RS PRO, Plug Cable Mount SMA Connector, 50Ω, Clamp Termination, Right Angle Body, Разъем

5463232
Производитель: RS PRO
Цена за шт.
3978.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

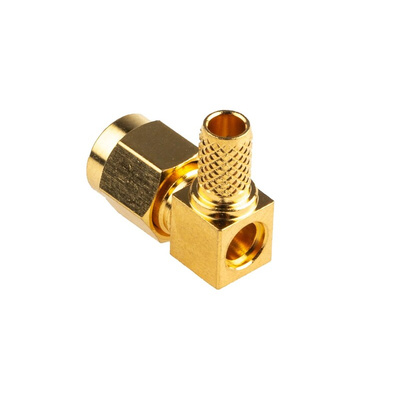

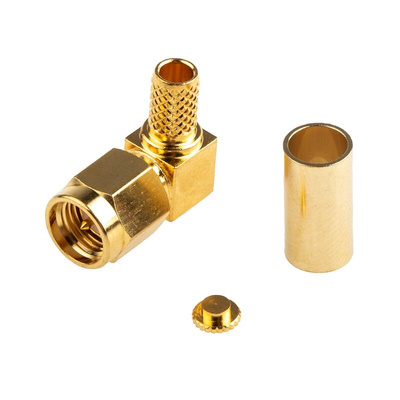

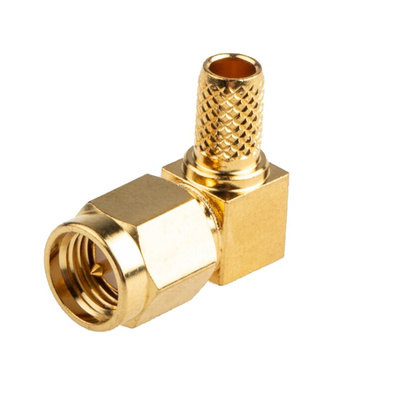

RS PRO 50 Ω Right Angle Cable Mount SMA Connector, Plug, RG58A

This subminiature radio frequency (RF) connector from RS PRO is the ideal tool for joining together smaller coaxial (sometimes called coax) cables. These transmit the RF signals that are present in all our homes and businesses, from mobile phone communication to microwaves.

This SMA connector has an operating frequency of 12.4 GHz and a characteristic impedance of 50 Ohms (Ω). It's suitable for use with R58A coaxial cables. These are typically used to transmit signals in laboratories, two-way radio communication systems and WLAN (Wireless Local Area Network) antennas.

The cable-mount coaxial connector has a plug-shaped coupling for secure connections and a right-angled orientation that makes it well-suited to tight spaces. It has a corrosion-resistant gold-plated brass body and gold-plated centre contact. The hexagonal shape enables quick and easy tightening and loosening.

As part of the RS PRO range, this product has been exhaustively tested for quality and reliability.

Features and Benefits

• Right-angle SMA connector
• Cable mounting
• Clamp termination
• For use with R58A cables
• Male RF coaxial connector
• Voltage rating of 500 V
• Characteristic impedance of 50 Ω
• Gold-plated brass body and gold-plated centre contact
• Normal polarity
• Suitable for use with a variety of RF coaxial cables
• Operating frequency up to 12.4 GHz
• Subminiature size
• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
• RoHS-compliant for hazardous substances

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Техническая спецификация
pdfRS PRO Datasheet
Импеданс:
50Ом
Кабель - тип:
RG58A
Концевая заделка:
Clamp
Материал контактов:
Латунь
Ориентация корпуса:
Правый угол
Переборка:
Нет
Покрытие контактов:
Золото
Покрытие корпуса:
Золото
Полярность:
Normal
Рабочая частота:
0 → 12.4ГГц
Размер:
Субминиатюрный
Род:
Male
Тип коаксиального разъема:
SMA Разъем
Тип монтажа:
Кабельное крепление
