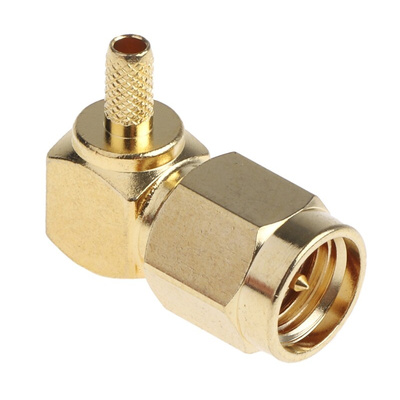

RS PRO, Plug Cable Mount SMA Connector, 50Ω, Crimp Termination, Right Angle Body, Разъем

5463248
Производитель: RS PRO
Цена за шт.
3818.10 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

RS PRO 50 Ω Right Angle Cable Mount SMA Connector, Plug, RG174

This male SMA connector from our flagship RS PRO range is a sub-miniature radio frequency (RF) connector that can be used to join coaxial cables together. This connector has an operating frequency of 6 GHz and accepts mostly small cables.

Coaxial cables (or coax cables) are used to transmit RF signals in homes and business. They're commonly found in microwave systems, mobile telephone antennas and Wi-Fi networks. When paired with a female receptacle, this cable mount SMA connector allows you to join two coax cables together. It has a right-angle body, which is great for hard-to-reach areas.

The connector can be crimped onto a variety of cables, including RG174. There's a plug-type coupling mechanism for reliable connectivity and a robust gold-plated body and it also has a handy hexagonal shape, which you can tighten or loosen easily with a spanner. This provides protection against any task that requires repetitive insertions.

Features and Benefits

• Right-angle SMA connector
• Cable mounting
• Characteristic impedance of 50 Ω
• Gold body plating and centre contact
• Normal polarity
• Suitable for use with a variety of RF coaxial cables
• Operating frequency up to 6 GHz
• Subminiature size

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Техническая спецификация
pdfRS PRO Dimensional Drawing
pdfRS PRO Datasheet
Импеданс:
50Ом
Кабель - тип:
RG174
Концевая заделка:
Crimp
Материал контактов:
Латунь
Ориентация корпуса:
Правый угол
Переборка:
Нет
Покрытие контактов:
Золото
Покрытие корпуса:
Золото
Полярность:
Normal
Рабочая частота:
6ГГц
Размер:
Субминиатюрный
Род:
Male
Тип коаксиального разъема:
SMA Разъем
Тип монтажа:
Кабельное крепление
