RS PRO, jack Cable Mount SMB Connector, 50Ω, Crimp Termination, Straight Body, Разъем

RS PRO 50Ω Straight Cable Mount SMB Connector, Jack, RG174/U

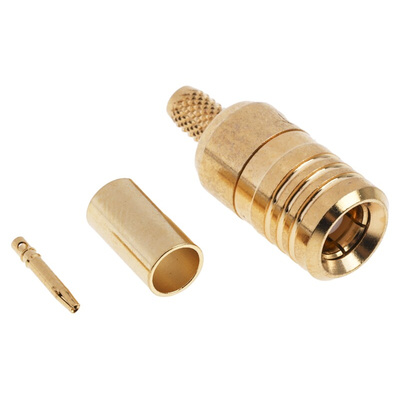

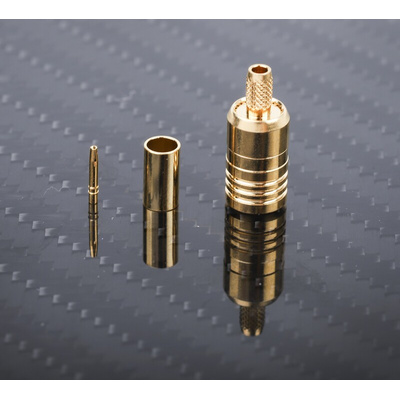

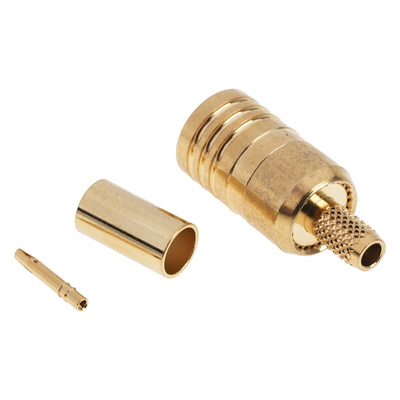

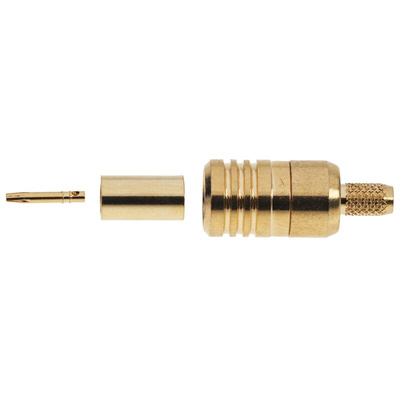

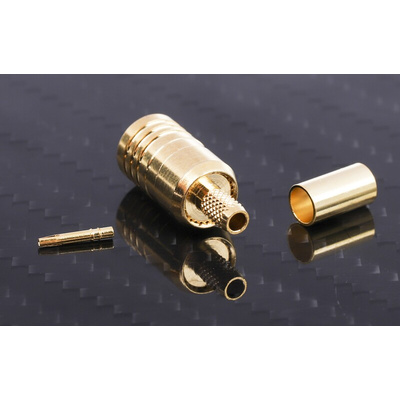

This female SMB connector from the RS PRO range is a sub-miniature radio frequency (RF) connector used to join coaxial cables together. These can then be used to convey data and are commonly found in most Wi-Fi networks and microwave systems. This coaxial connector is recommended for use with RG174A/U cables.

The connector has a snap-on coupling mechanism that lets you connect and disconnect quickly and easily. Once the connector has been crimped, the gold body and contact plating protect against vibration, helping to cancel out electromagnetic interference or 'noise'. These high-quality materials also prevent wear from repeated insertions.

With an operating frequency of 4 GHz and a temperature range of -55°C to +155°C, this connector is well suited for coaxial transmissions as it offers high transfer capability and can withstand vast temperature changes.

Features and Benefits

• Straight body female SMB connector
• RG174/U cable
• Subminiature size
• Cable mounting type
• Crimp termination method
• Characteristic impedance of 50 Ω
• Operating frequency of 4 GHz
• Normal polarity
• Working voltage of 500 Vdc or ac (peak)
• High-quality gold body plating and contact plating
• Beryllium copper contact material

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Approvals

-

Dimensional Drawing

RS Pro Datasheet
