RS PRO, Plug Cable Mount SMB Connector, 50Ω, Crimp Termination, Right Angle Body, Разъем

RS PRO 50 Ω Right Angle Cable Mounting, SMB Connector, Plug, RG174 A/U

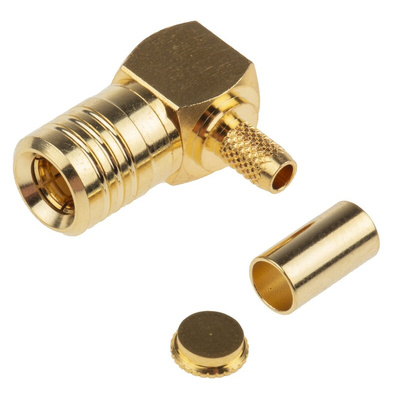

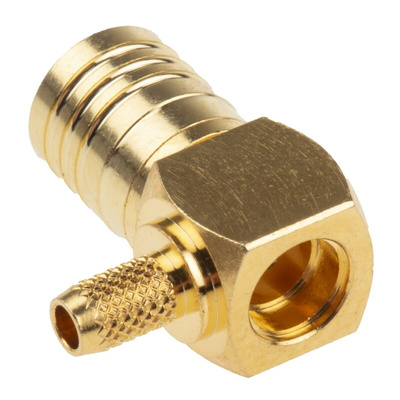

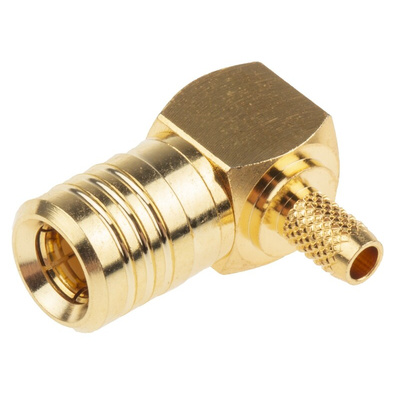

This right-angle connector from RS PRO is a subminiature connector you can use to securely connect coaxial cables together. The right-angled orientation of the connector makes it ideal for use in tight or awkward spaces. It also helps to relieve strain on the cables to prevent breaking and ensure more reliable data transmission.
Once installed, this SMB (SubMiniature version B) connector can be quickly connected and disconnected, thanks to the snap-on coupling mechanism. This makes the connector ideal for fieldwork or situations where a speedy and stable connection is crucial.
The gold-plated body is highly durable and will easily withstand wear and tear from repeated use. Crimped ferrule termination ensures an airtight connection, protecting the integrity of the connector and extending its lifespan.

Features and Benefits

• Right angle body orientation
• Gold body plating
• RG174 A/U cable type
• SMB coaxial connector type
• Beryllium copper contact material
• Gold contact plating
• Male gender
• Impedance of 50 Ω
• Quick-connect, quick-disconnect mating type
• Cable mounting type
• Operating frequency of 4 GHz
• Subminiature size
• Crimp termination method

Approvals

-

Datasheet

Dimensional Drawing

RS Pro Datasheet
