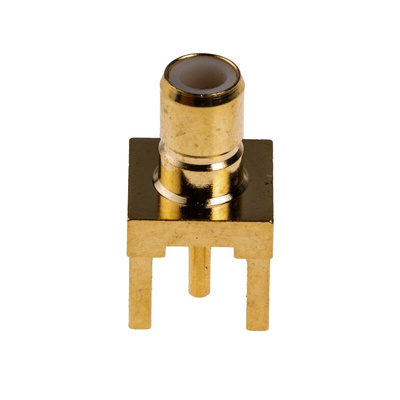

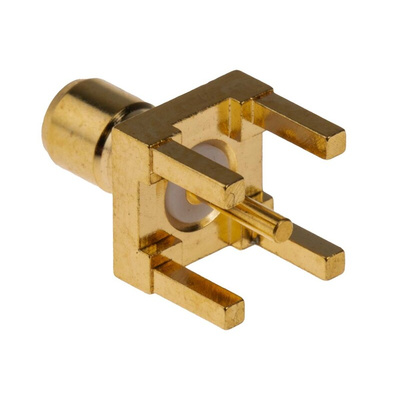

RS PRO, jack PCB Mount SMB Connector, 50Ω, Solder Termination, Straight Body, Разъем

RS PRO 50Ω Straight PCB Mount SMB Connector, Jack, RG174 A/U

This male PCB coaxial connector from the RS PRO range is a subminiature connector perfect for joining a cable with a printed circuit board (PCB). It’s recommended for use with RG174 A/U cables.

You'll often find that connectors of this type are used to create secure transmission lines in most Wi-Fi networks and microwave systems, enabling you to convey data, video and voice communications through a reliable signal.

Like all SMB connectors, this model has a snap-on coupling mechanism for quick and reliable use. For proper termination, it should be soldered onto cables. The hardwearing gold body plating and contact plating help to cancel out electromagnetic interference or 'noise' while protecting against vibration from the cables.

This PCB connector has an operating frequency of 4 GHz and a characteristic impedance of 50 Ω

Features and Benefits

• Straight body female SMB connector
• RG174 A/U coaxial connector
• PCB mounting type
• Subminiature size
• Operating frequency of 4 GHz
• Designed for soldering onto cables
• Characteristic impedance of 50 Ω
• Normal polarity
• Robust gold body plating and contact plating
• Brass contact material
• Quick connect mating type
