RS PRO, Plug PCB Mount SMB Connector, 50Ω, Solder Termination, Right Angle Body, Разъем

5463406
Производитель: RS PRO
Цена за шт.
3884.40 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

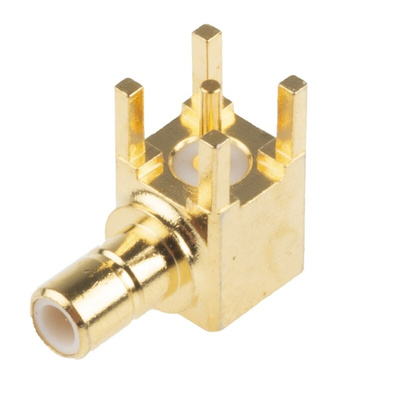

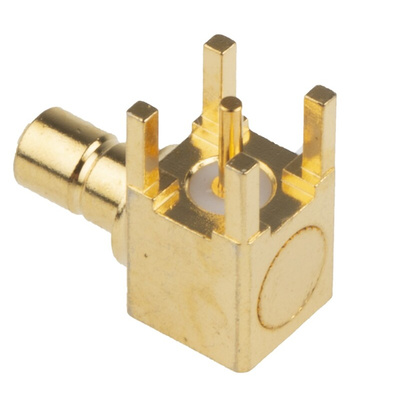

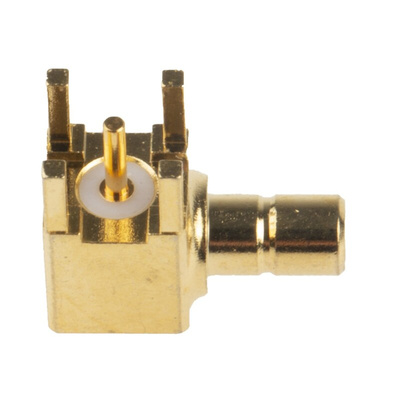

RS PRO 50Ω Right Angle PCB Mount SMB Connector, Plug

This subminiature male SMB coaxial connector from our trusted RS PRO range offers a handy right-angle orientation, making it useful for data transmission in many hard-to-reach areas.

Found in most Wi-Fi applications and microwave systems, the main use of this type of cable is to convey data swiftly and securely across networks. This coaxial connector is quick and easy to mount to your printed circuit board (PBC) with its snap-on connect and disconnect mechanism. Once you’ve found the cables you want to join with the PCB, the connector can then be soldered onto them for termination.

With high-quality gold body plating and contact plating, this robust connector is heavily protected against wear from repeated insertions and vibration, ensuring a secure connection. This tight seal helps to protect against electromagnetic interference or 'noise'.

Features and Benefits

• Right angle male SMB connector
• PCB mounting type
• Handy snap-on coupling mechanism
• Brass contact material
• Solder termination method
• Characteristic impedance of 50 Ω
• Operating frequency of 4 GHz
• Normal polarity
• High-quality gold contact and body plating

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Approvals

-

Техническая спецификация
pdfDimensional Drawing
pdfRS Pro Datasheet
Импеданс:
50Ом
Концевая заделка:
Припой
Материал контактов:
Латунь
Ориентация корпуса:
Правый угол
Покрытие контактов:
Золото
Покрытие корпуса:
Золото
Рабочая частота:
4ГГц
Размер:
Субминиатюрный
Род:
Male
Тип коаксиального разъема:
SMB Connector
Тип монтажа:
Крепление на печатной плате
