RS PRO, Plug Cable Mount BNC Connector, 50Ω, Crimp Termination, Straight Body, Разъем

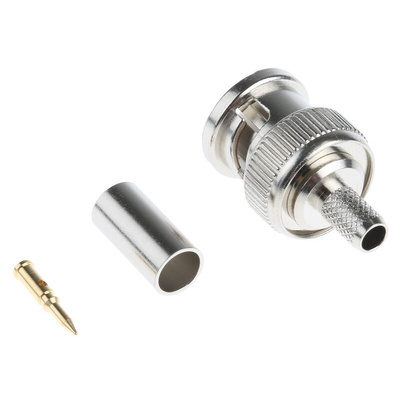

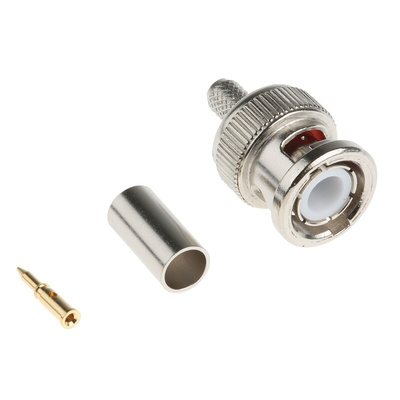

RS PRO 50Ω Straight Cable Mount BNC Connector, Plug, RG58

This BNC connector is designed for use with an RG-58 coaxial cable. It has an easy-to-terminate crimp cable design and uses a secure bayonet coupling system for easy connections and reliable signals.

With a nickel-plated body and gold-plated contact on the centre pin, this connector provides reliable conductivity over a long period of time. It employs easy-to-use connection methods, including a crimp termination that requires only a crimping tool to compress the connector onto an appropriate cable. The bayonet coupling system uses a twist-and-snap method to secure wires with ease. This connector features insulation made from PTFE (polytetrafluoroethylene), so it can withstand demanding environmental conditions. Not only is it hydrophobic, but it's also able to operate at temperatures from -20°C to +60°C.

This BNC connector is commonly used in RF signal applications for radio and television broadcasts. It can also be used for medical and test equipment.

Features and Benefits

• Male BNC connector
• Nickel-plated body and gold contact plating
• Straight body orientation
• 50 Ω of impedance
• Mounts to an RG-58 cable
• Normal polarity
• Operating frequency of 4 GHz
• PTFE (polytetrafluoroethylene) insulated
• Crimp termination
• Minimum operating temperature of -20°C
• Maximum operating temperature of +60°C

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Approvals

N/A

RS BNC Connectors

RS BNC connectors are suitable for a variety of applications including video signalling and test equipment.

RS PRO Drawing

Dimensional Drawing

RS PRO Datasheet
