RS PRO, Plug Cable Mount BNC Connector, 50Ω, Crimp Termination, Right Angle Body, Разъем

5463872
Производитель: RS PRO
Цена за шт.
3065.40 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

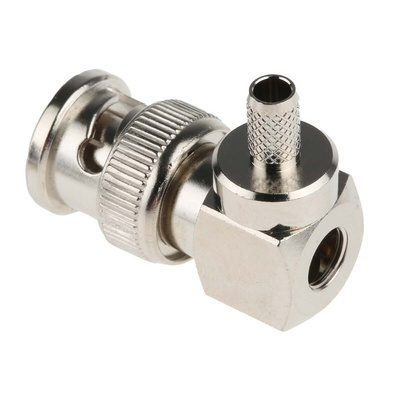

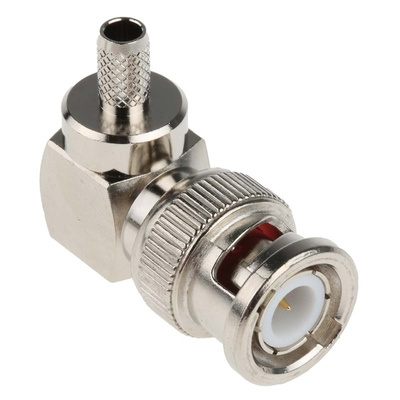

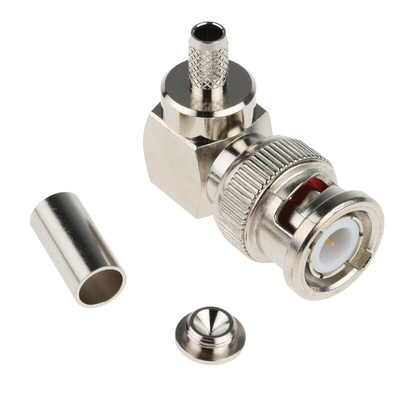

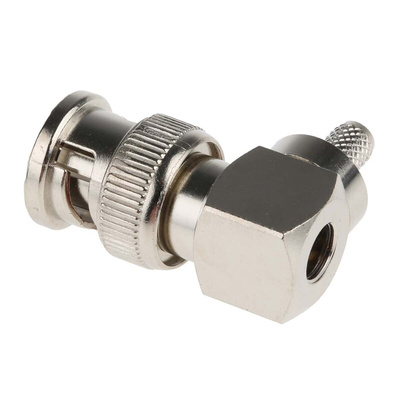

RS 50 Ohm Right Angle BNC RF Connector

From RS PRO, these right angle BNC coaxial connectors are designed for use with RG58 coaxial cables, and feature an easy-to-terminate cable crimp design.

The connector has a robust nickel plated body, and features the secure and convenient bayonet coupling system typical of a BNC connector. The centre pin contact is gold plated, for excellent conductivity over a long service life, and there is also a PTFE insulator for increased reliability.

Features and Benefits

• BNC plug
• Nickel plated body provides a heavy-duty build quality
• Gold contacts ensure maximum efficiency
• Crimp termination method
• 50Ω impedance
• Operating frequency of 4GhZ
• Insulation material: PTFE

Applications

BNC connectors are used in a variety of RF signal applications. Though they are most commonly used in radio and television broadcast applications, they can also be used in medical and test equipment.

• Antenna connection
• Cable Modems
• Telecom
• Medical Equipment
• Satcom
• CCTV

FAQs

Q: How should I connect a BNC connector to a coaxial cable?

A: This BNC is crimp termination, meaning it can be attached by using a crimping tool to compress the connector crimp ferrule onto an appropriate cable.

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS BNC Connectors

RS BNC connectors are suitable for a variety of applications including video signalling and test equipment.

Техническая спецификация
pdfInstallation Instruction Manual
pdfRS Pro Datasheet
Импеданс:
50Ом
Кабель - тип:
RG58
Концевая заделка:
Crimp
Материал контактов:
Латунь
Ориентация корпуса:
Правый угол
Переборка:
Нет
Покрытие контактов:
Золото
Покрытие корпуса:
Никель
Полярность:
Normal
Род:
Male
Тип коаксиального разъема:
BNC Разъем
Тип монтажа:
Кабельное крепление
