RS PRO, jack Panel Mount BNC Connector, 50Ω, Crimp Termination, Straight Body, Разъем

Straight Bulkhead Crimp Jack

RS 75 Ohm BNC RF Bulkhead BNC Connector Jack

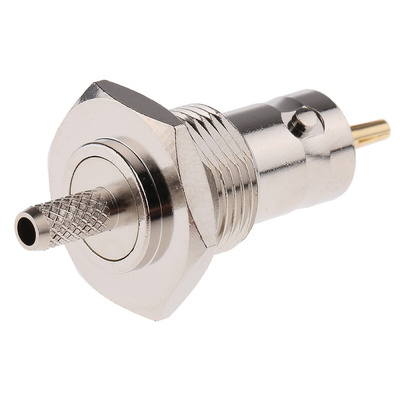

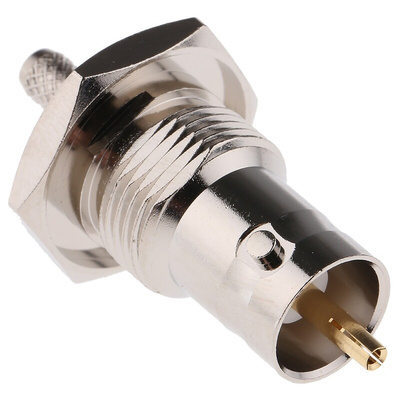

From RS PRO, this straight BNC coaxial connector is designed for use with mini RG174 cables, and features a bulkhead and screw on nut for mounting to panels and chassis.

The connector has a robust nickel plated body, and features the secure and convenient bayonet coupling system typical of a BNC connector. The centre pin contact is gold plated, for excellent conductivity over a long service life, and there is also a PTFE insulator for increased reliability.

Features and Benefits

• BNC plug with bulkhead
• Nickel plated body provides a heavy-duty build quality
• Gold contacts ensure maximum efficiency
• Crimp termination method
• 75 Ω impedance
• Operating frequency of 4GhZ
• Insulation material: PTFE

Applications

BNC connectors are used in a variety of RF signal applications. Though they are most commonly used in radio and television broadcast applications, they can also be used in medical and test equipment.

• Antenna connection
• Cable Modems
• Telecom
• Medical Equipment
• Satcom
• CCTV

FAQs

Q: How should I connect a BNC connector to a coaxial cable?

A: This BNC connector is crimp terminating, and can be easily attached by compressing the crimp ferrule onto an appropriate cable. Crimp tooling is required to affectively achieve termination.
