RS PRO, jack PCB Mount BNC Connector, 50Ω, Through Hole Termination, Right Angle Body, Разъем

RS 50 Ohm BNC RF Coaxial Right Angle PCB Mount Jack Receptacle

50 Ohm BNC right angle PCB mount RF coaxial jack receptacle connectors with a bayonet fitting. These 50 Ohm RF coax PCB mount BNC jack receptacle connectors have a nickel plated body and gold plated centre contact.

RS PRO Right Angle PCB BNC Jack

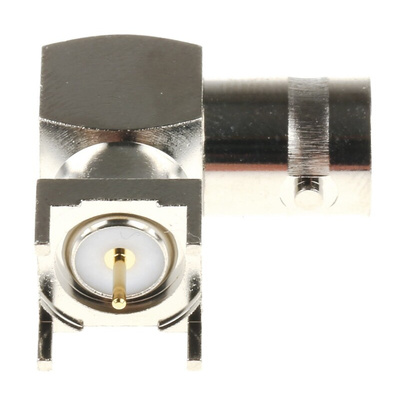

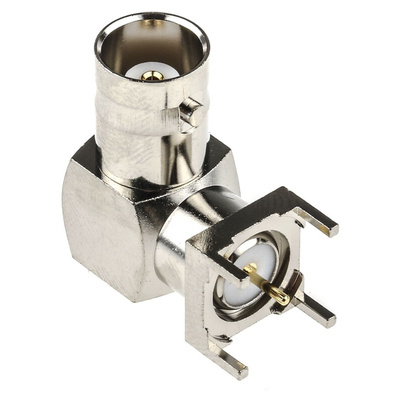

From RS PRO, this right angle BNC connector is designed for use with coaxial cables. It is PCB mounting for wire-to-board applications.

The connector has a robust nickel plated body, and features the secure and convenient bayonet coupling system typical of a BNC connector. The centre pin contact is gold plated, for excellent conductivity over a long service life, and there is also a PTFE insulator for increased reliability.

Features and Benefits

• 90° BNC plug
• Nickel plated body provides a heavy-duty build quality
• Gold contacts ensure maximum efficiency
• 50Ω impedance
• Operating frequency of 4GhZ
• Insulation material: PTFE

Applications

BNC connectors are used in a variety of RF signal applications. Though they are most commonly used in radio and television broadcast applications, they can also be used in medical and test equipment.

• Antenna connection
• Cable Modems
• Telecom
• Medical Equipment
• Satcom
• CCTV

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS BNC Connectors

RS BNC connectors are suitable for a variety of applications including video signalling and test equipment.
