RS PRO, jack PCB Mount BNC Connector, 75Ω, Through Hole Termination, Right Angle Body, Разъем

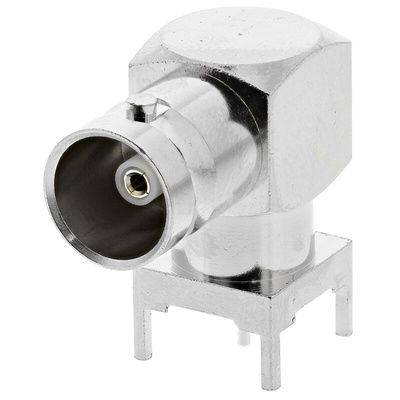

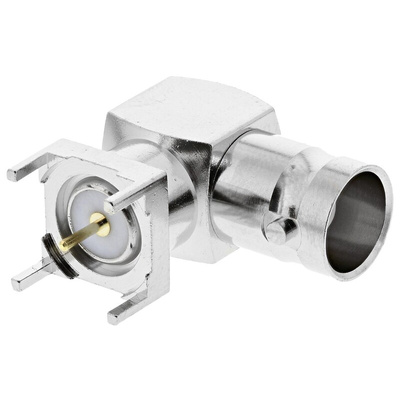

RS PRO 75 Ω Right Angle PCB Mounting, BNC Connector, Jack

This Bayonet Neill-Concelman (BNC) connector from RS PRO brings coaxial cables together while minimising electrical interference. It's designed to mount to a printed circuit board (PCB), keeping the connection stable and reducing vibration disruption.
Its right-angle shape fits into tight electrical set-ups and along walls while keeping your cables straight. The connector has an impedance of 75 Ω to keep loss to a minimum while maximising voltage power.
The nickel and gold plating on the conductive brass body and contact resist rust build-ups while the polytetrafluoroethylene (PTFE) insulation material ensures any water that gets in is stopped from damaging the connection. It holds a Restriction of Hazardous Substances (RoHS) certificate of compliance to assure you it contains only minimal amounts of any hazardous substances.

Features and Benefits

• Right angle body orientation
• Nickel body plating
• No bulkhead
• BNC (Bayonet Neill-Concelman) connector coaxial type
• Brass contact material
• Gold contact plating
• Female gender
• Impedance of 75 Ω
• PCB (printed circuit board) mounting type
• Operating frequency of 0 to 1 GHz
• Normal polarity
• Through-hole termination method

Dimensional Drawing

RS Pro Datasheet
