RS PRO Straight 50Ω Coax Adapter BNC Socket to BNC Socket 4GHz, Переходник

RS PRO Straight 50 Ω Coax Adapter BNC Socket to BNC Socket 4 GHz

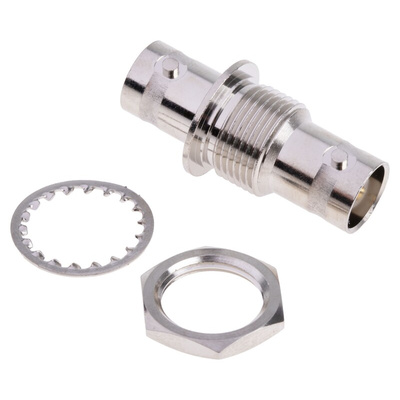

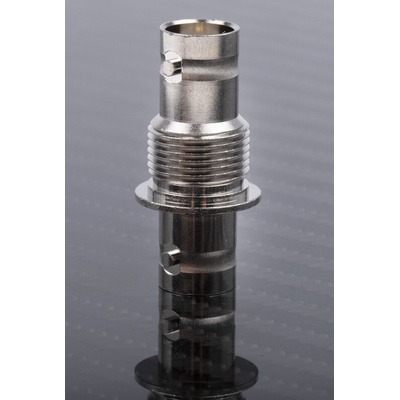

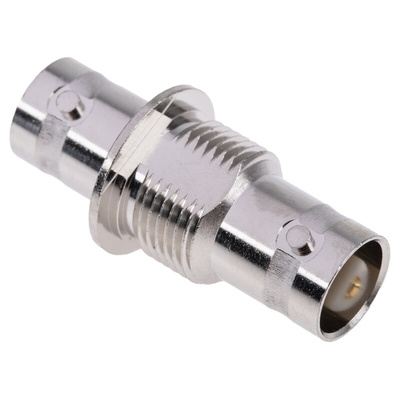

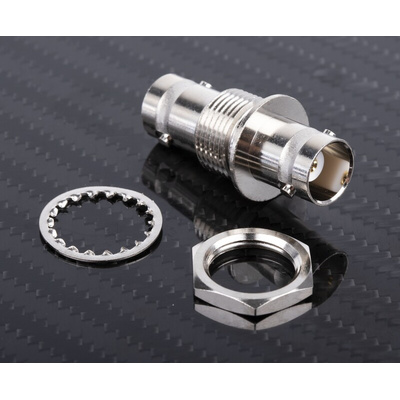

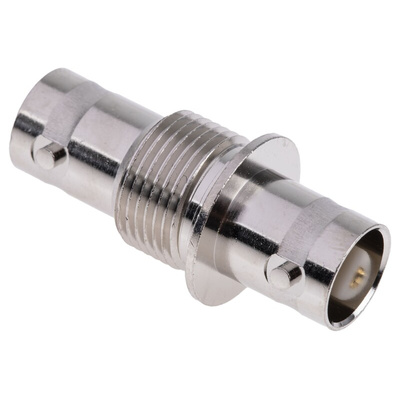

Need to join one BNC socket to another to make a quick radio-frequency connection between cables? This 50 Ω BNC jack-to-jack coupler from the RS PRO range uses bayonet fixings to quickly connect coaxial cables. It comes with a nut and internal tooth washer to fix it securely to a pre-drilled hole in panels or equipment housing. Its nickel-plated body helps resist corrosion and a gold-plated centre contact optimises signal transmission. This kind of adapter is suitable for a variety of applications including video signalling and test equipment.

The 32.5 mm-long coax adapter has an operating frequency of 4 GHz. The straight body orientation allows you to join two straight cables into a longer straight cable assembly. It has been exhaustively tested to ensure its safety and reliability. That means it won't damage equipment via electrostatic discharge (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007) and contains only minimal hazardous substances (RoHS).

Features and Benefits

• BNC socket to BNC socket coax adapter
• Panel mount
• Impedance of 50 Ω
• Nickel-plated body to resist corrosion
• Gold-plated contacts for optimum transmission of the signal
• 32.5 mm long
• Operating frequency of 4 GHz
• Uses include video signalling and test equipment
• Conforms to standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 (electrostatic discharge)
• RoHS compliant on hazardous substances

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Approvals

N/A

Dimensional Drawing

RS PRO Datasheet
