RS PRO, Plug Cable Mount BNC Connector, 50Ω, Clamp Termination, Right Angle Body, Разъем

BNC Clamp Plug and Jacks

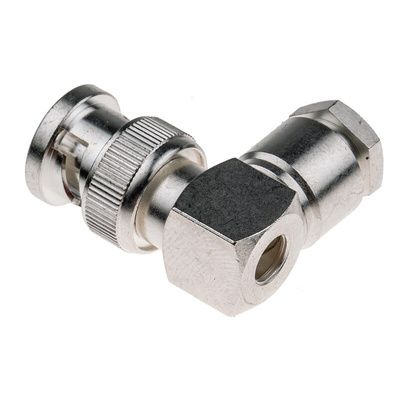

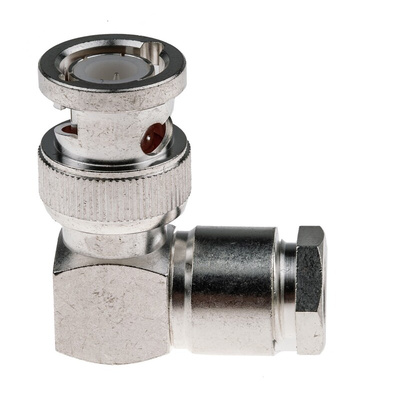

RS PRO Right Angle Silver Plated BNC Connector

From RS PRO, this robust and reliable BNC connector is designed to be used with RG213 coaxial cables. It features a silver plated contact and body, for a cost-effective and highly conductive connection solution. The robust brass body features the bayonet mating typical of a BNC connector, ensuring a secure and reliable connection to corresponding connectors.

Features and Benefits

• Right angle BNC RF connector
• Cable mounting
• Silver plated brass body
• Silver plated contact
• Cable group A

Applications

BNC connectors are used in a variety of RF signal applications. Though they are most commonly used in radio and television broadcast applications, they can also be used in medical and test equipment.

• Antenna connection
• Cable Modems
• Telecom
• Medical Equipment
• Satcom
• CCTV

FAQs

Q: How should I connect a BNC connector to a coaxial cable?

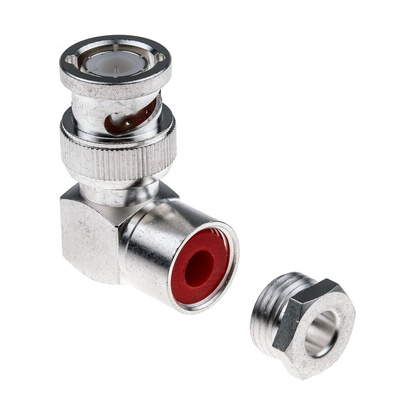

A: This cable mounting connector has an easy-to-terminate cable clamp, for efficient and secure termination to an appropriate cable. It simply screws onto the cable. An adjustable spanner or similar tool may need to be employed to properly secure the connector to the cable.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Approvals

-

Dimensional Drawing

RS Pro Datasheet
