RS PRO, jack Panel Mount BNC Connector, 50Ω, Solder Termination, Straight Body, Разъем

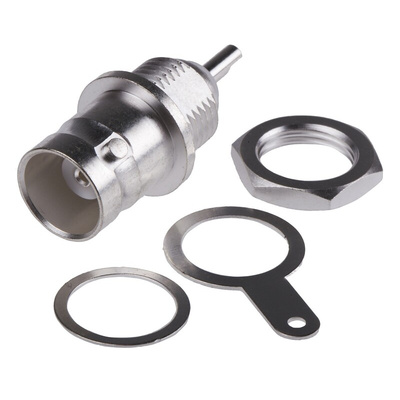

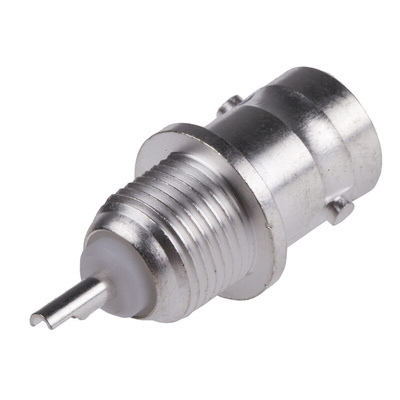

RS PRO 50 Ω Straight Panel Mounting, BNC Connector, Bulkhead Fitting, Jack

This RS PRO Bayonet Neill-Concelman (BNC) connector links two coaxial cables together and protects them from electromagnetic interference. Thread the bulkhead fitting into place to keep the unit in a tight connection that can't be easily shunted apart. It's designed for a solder termination method to keep the electrical flow from interference and distortion as it passes from cable to cable.
The silver plating on the body and contact materials makes the connector resistant to the build-ups of rust that can wear down the connection. Polytetrafluoroethylene (PTFE) insulation material inside the connector is hydrophobic to stop moisture from harming the connection.
The connector has a 50 Ω impedance rating to make even room for both power and voltage transfer. Its 4 GHz operating frequency provides a fast bandwidth speed for your application.

Features and Benefits

• Straight body orientation
• Silver body plating
• Bulkhead fitting
• BNC (Bayonet Neill-Concelman) connector coaxial type
• Copper contact material
• Silver contact plating
• Female gender
• Impedance of 50 Ω
• Panel mounting type
• Operating frequency of 4 GHz
• Normal polarity
• Solder termination method

Approvals

-

Dimensional Drawing

RS Pro Datasheet
