RS PRO, jack Flange Mount BNC Connector, 50Ω, Solder Termination, Straight Body, Разъем

Panel sockets

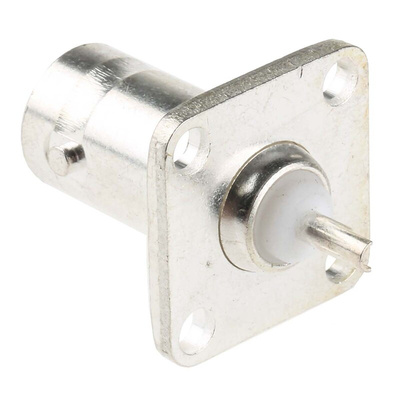

RS PRO Silver Plated Flange BNC Connector

From RS PRO, this BNC panel socket connector is designed for use with coaxial cables, and features an easy-to-terminate solder pin design. The connector has a solid integrated flange for secure panel fixing.

The connector has a robust nickel plated body, and features the secure and convenient bayonet coupling system typical of a BNC connector. The centre pin contact is silver plated, for excellent conductivity, and there is also a PTFE insulator for increased reliability.

Features and Benefits

• BNC panel socket
• Robust flange
• Silver lated contact ensure conductivity
• Solder pin termination method
• 50Ω impedance
• Insulation material: PTFE

Applications

BNC connectors are used in a variety of RF signal applications. Though they are most commonly used in radio and television broadcast applications, they can also be used in medical and test equipment.

• Antenna connection
• Cable Modems
• Telecom
• Medical Equipment
• Satcom
• CCTV

FAQs

Q: How should I connect a BNC connector to a coaxial cable?

A: This BNC has a solder pin termination, meaning it requires a soldering kit to attach to an appropriate cable.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Approvals

-

Dimensional Drawing

RS Pro Datasheet
