RS PRO, jack PCB Mount BNC Connector, 50Ω, Through Hole Termination, Right Angle Body, Разъем

PCB mounting sockets

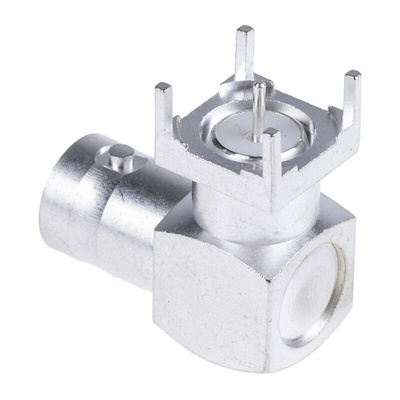

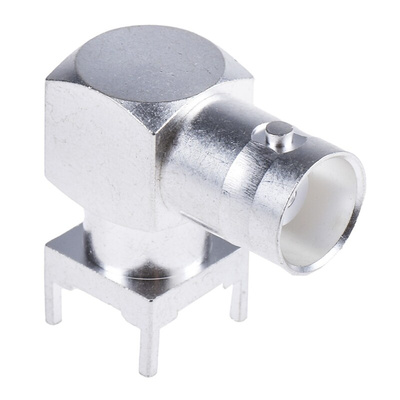

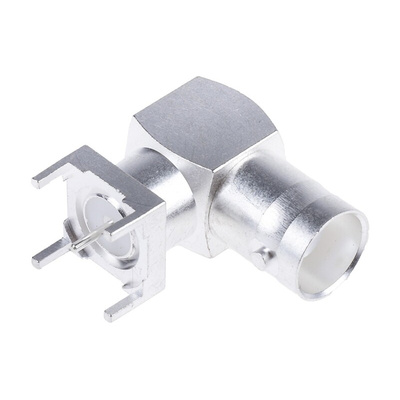

RS PRO Right Angle PCB BNC Jack

From RS PRO, this right angle BNC connector is designed for use with coaxial cables. It is PCB mounting for wire-to-board applications.

The connector has a robust silver plated body, and features the secure and convenient bayonet coupling system typical of a BNC connector. The centre pin contact is silver plated, for excellent conductivity. There is also a PTFE insulator for increased reliability.

Features and Benefits

• 90° BNC Connector
• Brass body material provides a heavy-duty build quality
• Silver contacts ensures efficiency
• PCB terminating
• 50Ω impedance
• Operating frequency of 4GhZ
• Insulation material: PTFE

Applications

BNC connectors are used in a variety of RF signal applications. Though they are most commonly used in radio and television broadcast applications, they can also be used in medical and test equipment.

• Antenna connection
• Cable Modems
• Telecom
• Medical Equipment
• Satcom
• CCTV
