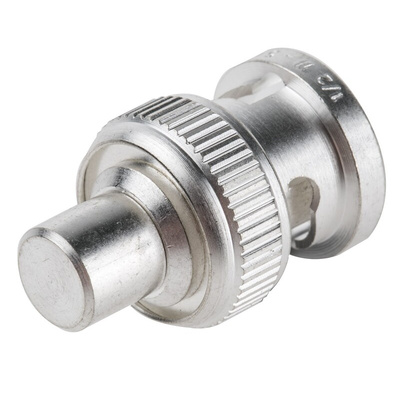

RS PRO 50 Ω Straight BNC RF Terminator, 0 – 1 GHz, 0.5 W Average Power Rating

You can use these RS PRO straight radiofrequency (RF) terminators to close off coaxial RF ports in your application. The terminators absorb the electrical energy of the signal as it reaches the cable end, reducing electrical noise and ensuring that the current flows smoothly from one device to another.
The product features a silver-plated body for great resistance to corrosion and wear and has a bayonet fitting that allows you to use it with Bayonet Neill–Concelman (BNC) connectors. The brass contacts are gold-plated, which guarantees a reliable and stable connection.
RF terminators are most commonly used in high-frequency systems and circuits, especially when you need to handle high-power signals. These connectors are suitable for use in a variety of applications, which include video signalling and test equipment.

Features and Benefits

• Average power rating of 0.5 W (watts)
• Operating frequency of 0 to 1 GHz
• Straight body orientation
• Silver body plating
• Gold contact plating
• Brass contact material
• Male gender
• Impedance of 50 Ω (ohms)
• BNC interface type

Approvals

N/A
