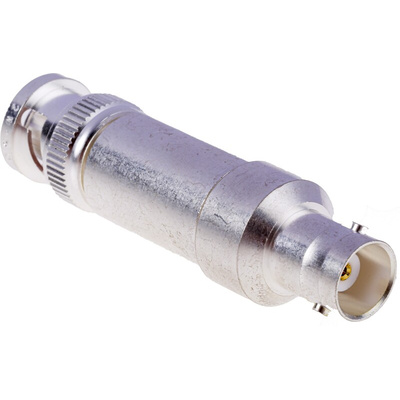

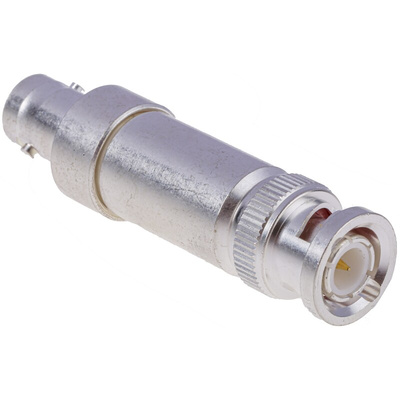

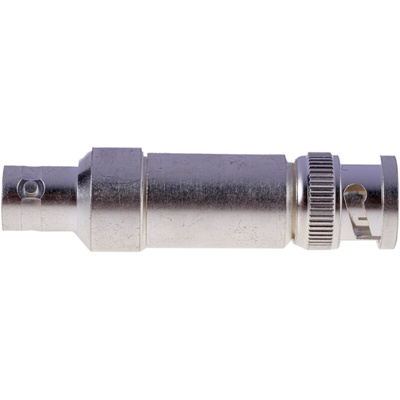

RS PRO 50Ω Straight BNC RF Terminator, Through Hole, 0 → 0.5GHz, 2W Average Power Rating, Радиочастотный разделитель

RS PRO 50 Ω Straight BNC RF Terminator, Through Hole, 0 → 0.5 GHz, 2 W Average Power Rating

Avoid frustrating video ghosting with the RS PRO RF terminator. Designed to prevent radio frequency (RF) signals from being reflected, the component fits to the end of radio transmission lines to help stop frequency distortion and power loss.

This BNC (Bayonet Neill–Concelman) terminator is a miniature component used with coaxial cable and it's quick to connect and disconnect. The part has an average power rating of 2 W, has a maximum operating frequency of 0.5 GHz and an impedance of 50 Ω. The male-female connector has a silver-plated body with gold-plated contacts and it's a through-hole mounting type.

Straight plug terminators, such as this one, are suitable for a variety of applications including video signalling and test equipment. They're designed to match the surge impedance of the cable to help minimise reflection and ambiguous digital signals that impact on the system's operation.

Features and Benefits

• RF terminator with straight-body orientation
• Operating frequency of 0 GHz to 0.5 GHz
• Gold contact plating
• Brass contact material
• Silver body plating
• Through-hole mounting
• BNC interface type
• Impedance of 50 Ω
• Average power rating of 2 W
• Female, male terminator type
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Approvals

N/A
