RS PRO 50Ω Straight Cable Mount BNC Connector, Plug, RG58A, Разъем

5464875
Производитель: RS PRO
Цена за шт.
1089.00 руб. (С НДС) *
Количество 10+ 25+ 50+ 100+
Цена 981.00 руб. 882.00 руб. 801.00 руб. 714.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

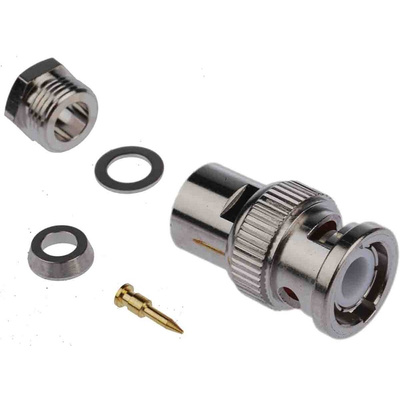

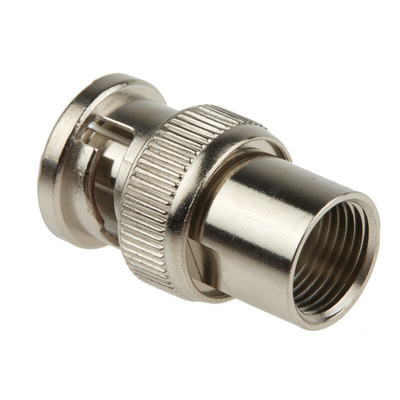

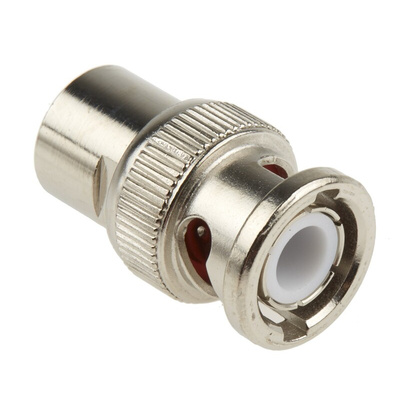

RS 50 Ohm BNC RF Coaxial Cable Clamp Plug Connectors

50 Ohm BNC RF coaxial plug connectors with bayonet coupling and a cable clamp termination. These 50 Ohm BNC straight RF coax cable clamp plugs have a nickel plated body, gold plated centre contact and are for use with a variety RF coaxial cable types.

RS PRO BNC Coaxial Connector

From RS PRO, these BNC coaxial connectors are designed for use with RG-58 coaxial cables, and feature an easy-to-terminate cable clamp design.

The connector has a robust nickel plated body, and features the secure and convenient bayonet coupling system typical of a BNC connector. The centre pin contact is gold plated, for excellent conductivity over a long service life, and there is also a PTFE insulator for increased reliability.

Features and Benefits

• BNC plug
• Nickel plated body provides a heavy-duty build quality
• Gold contacts ensure maximum efficiency
• Cable clamp termination method
• 50 Ω impedance
• Operating frequency of 4GhZ
• Insulation material: PTFE


Applications

BNC connectors are used in a variety of RF signal applications. Though they are most commonly used in radio and television broadcast applications, they can also be used in medical and test equipment.

• Antenna connection
• Cable Modems
• Telecom
• Medical Equipment
• Satcom
• CCTV

FAQs

Q: How should I connect a BNC connector to a coaxial cable?

A: This BNC has a cable clamp termination, meaning it employs a simple screw-on action to tighten on to and attach to an appropriate cable. An adjustable spanner may be needed to assist with this.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Approvals

N/A

RS BNC Connectors

RS BNC connectors are suitable for a variety of applications including video signalling and test equipment.

Техническая спецификация
pdfInstallation Instruction Manual
pdfRS Pro Datasheet
Импеданс:
50Ом
Кабель - тип:
RG58A
Концевая заделка:
Clamp
Материал контактов:
Латунь
Ориентация корпуса:
Прямой
Переборка:
Нет
Покрытие контактов:
Золото
Покрытие корпуса:
Никель
Полярность:
Normal
Род:
Male
Тип коаксиального разъема:
BNC Разъем
Тип монтажа:
Кабельное крепление
