RS PRO, Plug Cable Mount BNC Connector, 75Ω, Clamp Termination, Straight Body, Разъем

RS 75 Ohm BNC RF Coaxial Cable Clamp Plug Connectors

75 Ohm BNC RF coaxial plug connectors with bayonet coupling and a cable clamp termination. These 75 Ohm BNC straight RF coax cable clamp plugs have a nickel plated body, gold plated centre contact and are for use with a variety of RF coaxial cable types.

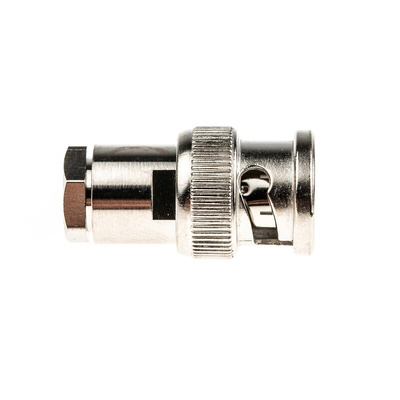

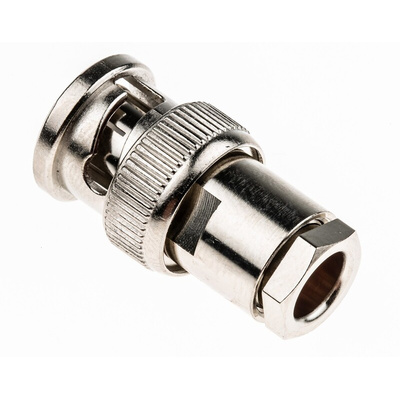

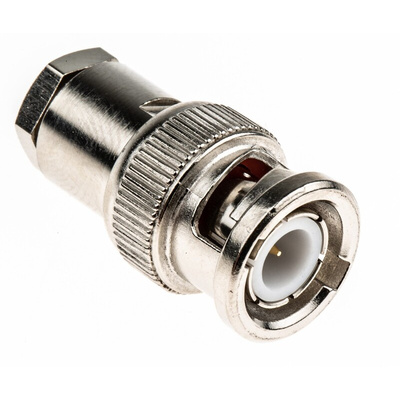

RS PRO 75 Ohm Cable Clamp BNC Connecter

From RS PRO, this robust and reliable BNC connector is designed to be used with RG59 coaxial cables. It features a gold plated contact for a long lasting and highly conductive connection solution. The robust brass body features the bayonet mating typical of a BNC connector, ensuring a secure and reliable connection to corresponding connectors.

Features and Benefits

• 75Ω BNC RF Connector
• Cable clamp termination
• Nickel plated brass body
• Gold plated contact
• Cable group F

Applications

BNC connectors are used in a variety of RF signal applications. Though they are most commonly used in radio and television broadcast applications, they can also be used in medical and test equipment.

• Antenna connection
• Cable Modems
• Telecom
• Medical Equipment
• Satcom
• CCTV

FAQs

Q: How should I connect a BNC connector to a coaxial cable?

A: This cable mounting connector has an easy-to-terminate cable clamp solution. The clamp is simply screwed onto the cable. An adjustable spanner or similar tool can be employed to ensure a secure termination.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Approvals

N/A

RS BNC Connectors

RS BNC connectors are suitable for a variety of applications including video signalling and test equipment.

Installation Instruction Manual
