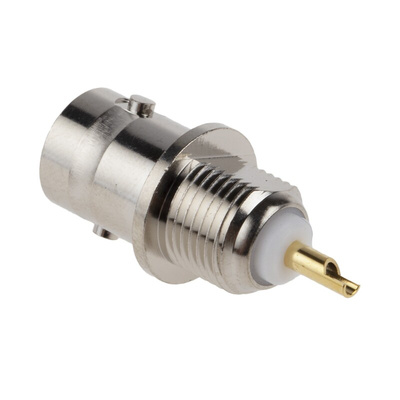

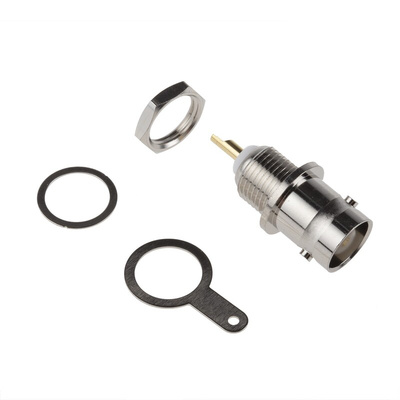

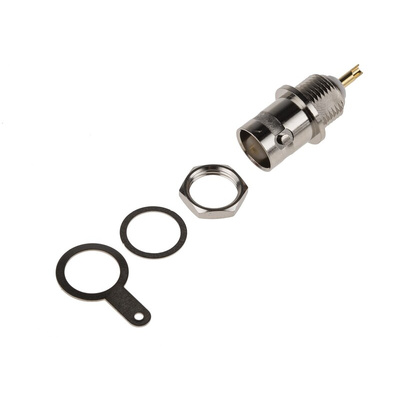

RS PRO, jack Panel Mount BNC Connector, 50Ω, Solder Termination, Straight Body, Разъем

RS PRO 50 Ω Straight Panel Mounting, BNC Connector, Bulkhead Fitting, Jack

Attach two coaxial cables to this connector from RS PRO to transfer an electrical current between them and shield them from disruptive electromagnetic interference. The connector has a Bayonet Neill-Concelman (BNC) port which threads into place with the bulkhead fitting to stop accidental disconnection. Solder the terminal to the cables to keep the electrical flow in an extra-tight bond.
The brass body material helps boost the current's conductivity and is resistant to overheating. The brass is also coated in silver to protect it from corrosion and the polytetrafluoroethylene (PTFE) internal insulation material repels moisture build-ups that can harm your connection.
The 50 Ω impedance level maintains a medium resistance to encourage a balanced transferral between power and voltage. The connector meets the standards of the Restriction of Hazardous Substances (RoHS) to make sure it contains only negligible amounts of any harmful materials.

Features and Benefits

• Straight body orientation
• Nickel body plating
• Bulkhead fitting
• BNC (Bayonet Neill-Concelman) connector coaxial type
• Brass contact material
• Gold contact plating
• Female gender
• Impedance of 50 Ω
• Panel mounting type
• Operating frequency of 4 GHz
• Normal polarity
• Solder termination method

Approvals

N/A

Dimensional Drawing
