RS PRO, jack Panel Mount BNC Connector, 75Ω, Solder Termination, Straight Body, Разъем

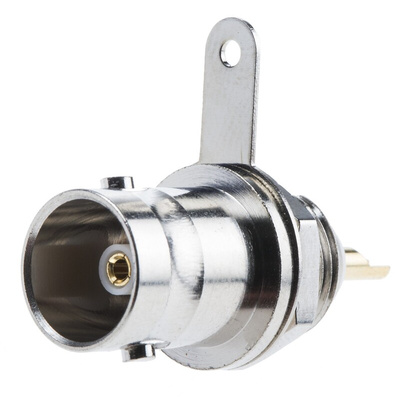

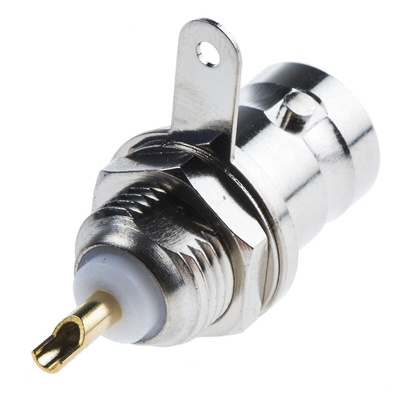

RS PRO 75 Ω Straight Panel Mounting, BNC Connector, Bulkhead Fitting, Jack

This connector links two coaxial cables together and provides electrical shielding and resisting electromagnetic interference. The connector has a 75 Ω impedance level to keep loss to a minimum as power transfers through each cable.
The unit has a Bayonet Neill-Concelman (BNC) connector type that has bulkhead fitting threads cables together to protect the connection from being shunted or accidentally pried apart. The brass contact material increases the conduction level between cables. Its body is also coated in nickel and the contact is coated in gold, both resisting moisture build-ups that can cause rust to form.
The cables solder to the connector to keep the connection extra tight. It's constructed in accordance with Restriction of Hazardous Substances (RoHS) to ensure it's made with only trace amounts of any substances that could harm your health.

Features and Benefits

• Straight body orientation
• Nickel body plating
• Bulkhead fitting
• BNC (Bayonet Neill-Concelman) connector coaxial connector type
• Brass contact material
• Gold contact plating
• Female gender
• Impedance of 75 Ω
• Panel mounting type
• Operating frequency of 1 GHz
• Normal polarity
• Solder termination method

Approvals

N/A

Dimensional Drawing
