RS PRO, jack Panel Mount BNC Connector, 50Ω, Solder Termination, Straight Body, Разъем

RS PRO 50 Ω BNC RF Coaxial Isolated Bulkhead Jack Receptacle

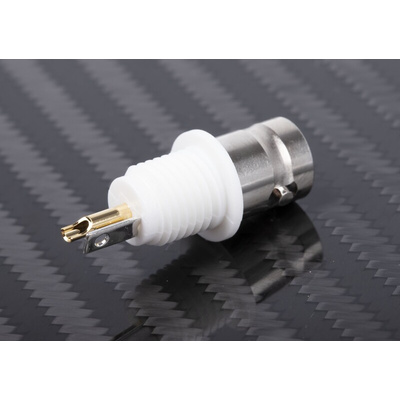

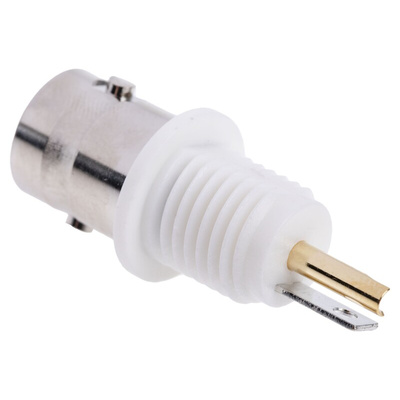

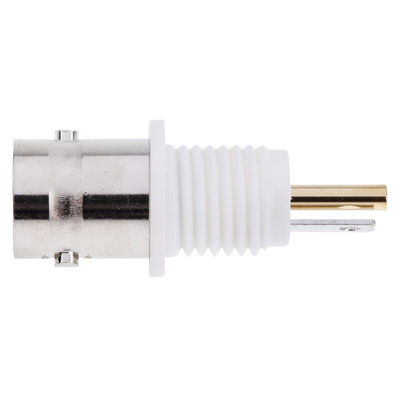

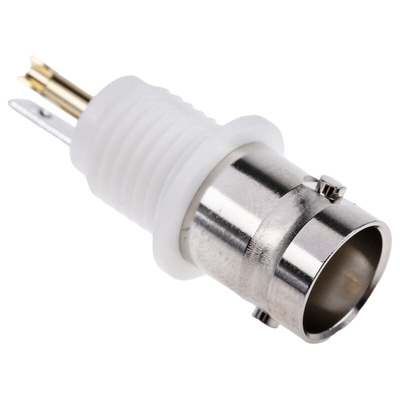

From RS PRO, this BNC coaxial connector is designed for use with coaxial cables, and features a bulkhead and screw on nut for mounting to panels and chassis.

The connector has a robust nickel plated body, and features the secure and convenient bayonet coupling system typical of a BNC connector. The centre pin contact is gold plated, for excellent conductivity over a long service life, and there is also a PTFE insulator for increased reliability.

Features and Benefits

• BNC Connector
• Nickel plated body provides a heavy-duty build quality
• Gold contacts ensure maximum efficiency
• Solder tab termination method
• 50 Ω impedance
• Operating frequency of 4GhZ
• Insulation material: PTFE

Applications

BNC connectors are used in a variety of RF signal applications. Though they are most commonly used in radio and television broadcast applications, they can also be used in medical and test equipment.

• Antenna connection
• Cable Modems
• Telecom
• Medical Equipment
• Satcom
• CCTV

FAQs

Q: How should I connect a BNC connector to a coaxial cable?

A: This BNC has a solder tab termination, for a secure and long lasting connection. A soldering kit is needed to terminate this connector.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO 50Ω Straight Panel Mount BNC Connector, Bulkhead Fitting, Jack

For simple and efficient coaxial cable connections, turn to this female BNC connector from RS PRO. Often used in video equipment, this BNC connector has a secure bayonet coupling system that's quick to connect. Just twist and wait for the 'snap' noise to confirm that the wires are connected.

This BNC connector's nickel-plated brass body resists corrosion, while a gold-plated centre contact offers reliable long-term conductivity. This bulkhead connector has a straight body for fuss-free panel mounting, and the wire terminations can be soldered. For versatility, it has an impedance of 50 Ω and operates within a temperature range of -40°C to +60°C. As it's part of the RS PRO range, this connector has been stringently tested. It also meets RoHS (Restriction of Hazardous Substances) and electrostatic control standards.

In addition to its use in video signalling, this BNC connector is frequently found in industrial testing equipment such as audio generators and oscilloscopes.

Features and Benefits

• Female BNC connector

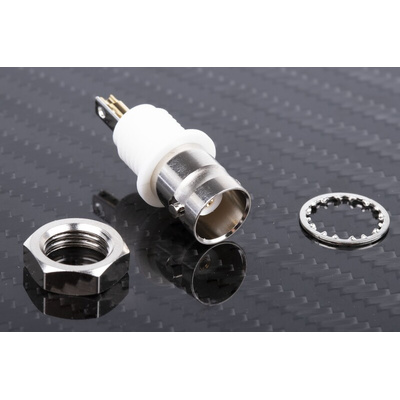

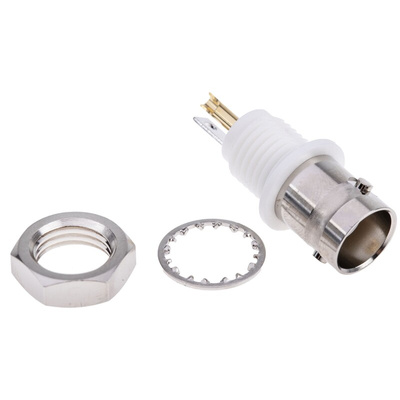

• Body, nut and washer made from nickel-plated brass and thermoplastic polymer (ABS)
• Straight body orientation
• Bulkhead fitting for panel mount
• Gold contact plating
• Impedance of 50 Ω
• Operating Frequency of 4 GHz
• Normal polarity
• Soldered termination
• RoHS (Restriction of Hazardous Substances) compliant
• Minimum operating temperature of -40°C
• Maximum operating temperature of +60°C

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Approvals

N/A

RS BNC Connectors

RS BNC connectors are suitable for a variety of applications including video signalling and test equipment.

Dimensional Drawing

RS PRO Datasheet
