RS PRO, jack PCB Mount BNC Connector, 50Ω, Through Hole Termination, Right Angle Body, Разъем

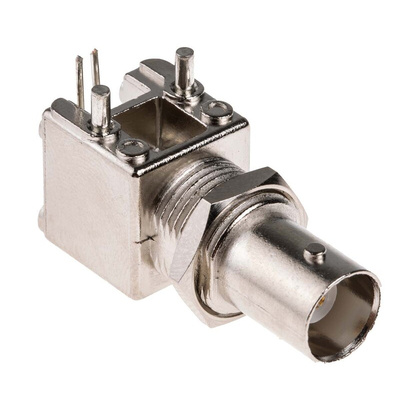

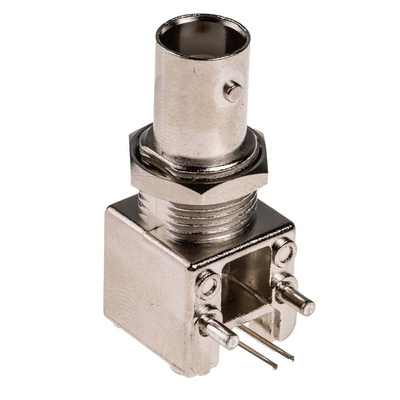

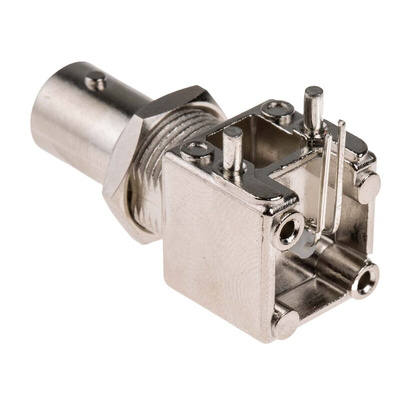

RS PRO Shielded PCB Mount BNC Connector

From RS PRO, this shielded BNC RF connector is designed for connection to coaxial cable assemblies, and features a bulkhead design for mounting to panels and chassis. It is PCB mounting for wire to device applications.

The connector has a robust metal plated body, and features the secure and convenient bayonet coupling system typical of a BNC connector. The centre pin contact is gold plated, for excellent conductivity over a long service life, and there is also a PTFE insulator for increased reliability.

Features and Benefits

• Shielded 90° BNC PCB Connector
• Gold contact ensures maximum efficiency
• PCB Mounting
• 50 Ω impedance
• Operating frequency of 4GhZ
• Insulation material: PTFE

Applications

BNC connectors are used in a variety of RF signal applications. Though they are most commonly used in radio and television broadcast applications, they can also be used in medical and test equipment.

• Antenna connection
• Cable Modems
• Telecom
• Medical Equipment
• Satcom
• CCTV
