RS PRO, Plug Cable Mount TNC Connector, 50Ω, Crimp Termination, Straight Body, Разъем

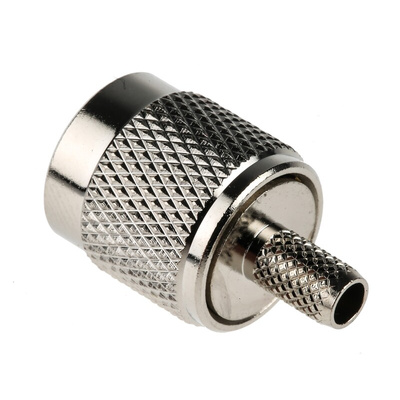

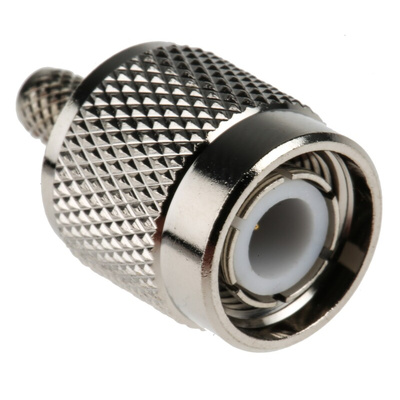

RS PRO 50Ω Straight Cable Mount TNC Connector, Plug, RG58

This male TNC coaxial connector from our RS PRO range is a miniature radio-frequency (RF) connector that's used for joining RG58 coaxial cables together. When paired with its corresponding female receptacle, this straight cable mount connector creates stable transmission lines that are perfect for conveying data.

Used in a wide range of radio and wired applications, this connector performs particularly well at microwave frequencies (e.g. with portable radios and mobile phone antennas). It's finished with high-quality gold contact plating that protects against corrosion.

TNC connectors have a similar design to BNCs, but with a threaded screw-fit mechanism rather than a bayonet. Crafted with weatherproof materials, its secure screw-fit mechanism protects against vibration and external electromagnetic interference. For proper termination, the coaxial connector should be crimped onto the cable with a crimping tool.

Features and Benefits

• Straight body male TNC connector
• Cable mounting
• Copper alloy contact material

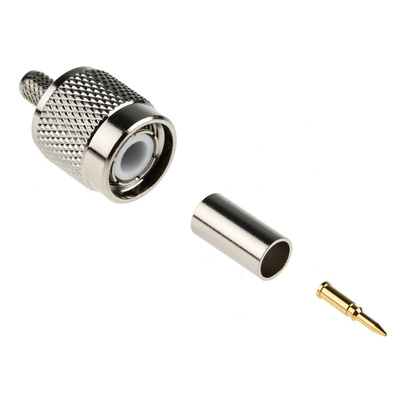

• Crimp termination method
• Characteristic impedance of 50 Ω
• Normal polarity
• Gold contact plating
• Compatible with RG58 cables
• Weatherproof materials and screw-fit mechanism protect against external interference

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
