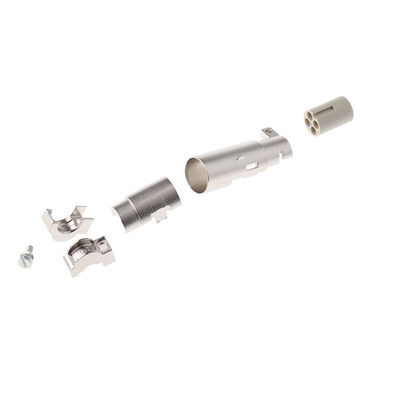

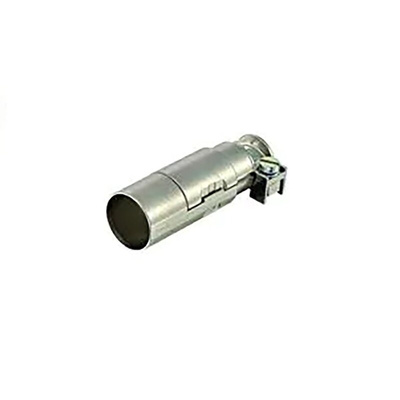

09150043013, HARTING Han-Modular Male Coaxial Contact

Han Quintax Modules®for female contacts

4 x Han D contacts per Han-Quintax contact®.
2 x Han-Quintax contacts®per Quintax module®.
Modular design (double module).
Suitable for Han-Modular standard and hinged frames.
Suitable for shielded cables with an external diameter of 3 → 6 mm or 6 → 9.5 mm.
Shielding control independent of enclosure potential.
Uninterrupted shielding connectors in a Han enclosure.
Ideal for transmitting very sensitive signals (BUS signals).
Han-D crimping contacts are ordered separately (stock no. 156-7267).

Harting Han® Modular

The Han-Modular series is a system consisting of insert modules and frames into which the insert modules fit. These in turn may be fitted to standard Han® housings. The system allows a variety of insert configurations within the one connector assembly. The Han-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power & pneumatic lines when a solution is required with one connector Apart from the quality of the crimp connector, the right choice of the assembly tool is the basic element of a reliable connection. HARTING offers appropriate crimping tools for different levels of automation for all connectors.

Han High Density Quintax

Quintax Male Contact Drawing
