RS PRO Thermocouple Compression Fitting for Use with Thermocouple, 1/2 BSP, 6mm Probe, RoHS Compliant Standard

RS PRO Thermocouple Compression Fitting for use with Thermocouple With 6 mm Probe Diameter, 1/2 BSP

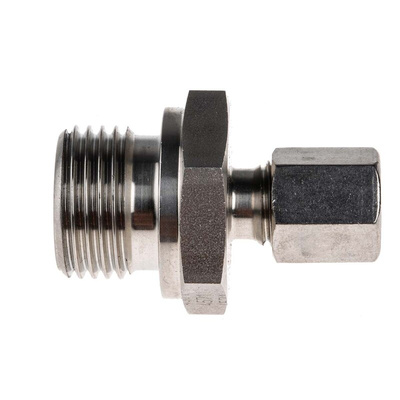

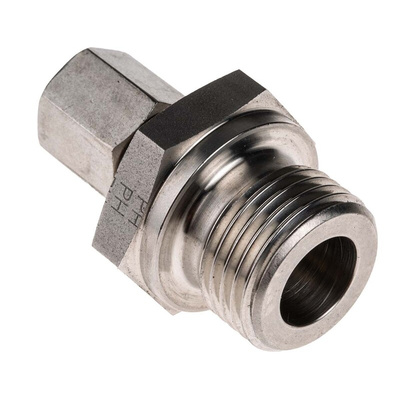

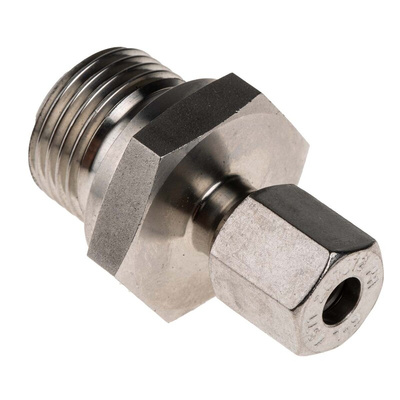

This sliding thermocouple compression fitting is an RS PRO temperature sensor accessory. It's used to hold thermocouple probes firmly in place and its compression provides a tight seal. The product is suited to a thermocouple with a probe diameter of 6 mm and a connection size of 1/2 BSP (British Standard Pipe Thread).

You'll find the component has an outer compression nut and an inner compression ring. The male thread of the fitting screws into a thermowell before a probe is inserted at the length you need. Then, the compression nut is tightened to force the inner ring to compress around the probe, holding it securely. This sliding connector is suited to 6 mm smooth probes and is available in high-quality stainless steel or polytetrafluoroethylene (PTFE), a tough, non-flammable synthetic resin.

RS PRO offers a range of temperature sensor components and accessories that complement their thermal sensors and transducers. Many of these are useful in applications within industrial automation systems.

Features and Benefits

• Thermocouple compression fitting to use with thermocouples
• Probe diameter of 6 mm
• Connector size of 1/2 BSP
• Sliding connector link
• Compression fitting available in 316L stainless steel or synthetic PTFE
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Thermocouple Connector Selection Guide

RS PRO Datasheet
