RS PRO Type J Thermocouple 30mm Length, 5mm Diameter → +400°C, Термопара

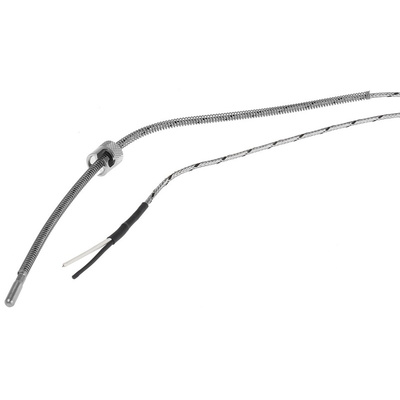

RS PRO Type J Thermocouple, +400°C, 30 mm Length, 5 mm Diameter

If you need to measure extreme temperatures quickly and accurately, choose this RS PRO Type J thermocouple. It's made up of two conductors with dissimilar alloys that join to create an electrical junction. This generates voltage in response to changes in temperature, allowing for highly accurate measurement.
The unit's two-slot bayonet mounting locks in place to keep the device secure. The insulation material is a fibre glass and stainless steel mixture that supports a wide operating temperature range of -60°C to +400°C. The thermocouple has an earthed junction with a fast thermal response time of just 0.7 seconds, so you can get temperature readings in real-time.
This thermocouple complies to the Restriction of Hazardous Substances (RoHS) directive, meaning it contains only minimal amounts of any material that may be hazardous to health. It's suitable for high-pressure applications or for use with corrosive media.

Features and Benefits

• Cable length of 2 m
• Maximum sensed temperature of +400°C
• Probe diameter of 5 mm
• Probe length of 30 mm
• Stainless steel probe material
• Response time of 0.7 s
• Meets RoHS (restriction of hazardous substances) standards
• Cable termination type
• Two-slot bayonet type J thermocouple probe for the plastics industry.
• 10 x 15 mm nickel-plated bayonet connection.
• Hot solder insulated from the earth.
• Bayonet can be adjusted from 40 to 200 mm.
• 5 x 30 mm diameter 316L stainless steel protective sheath.
