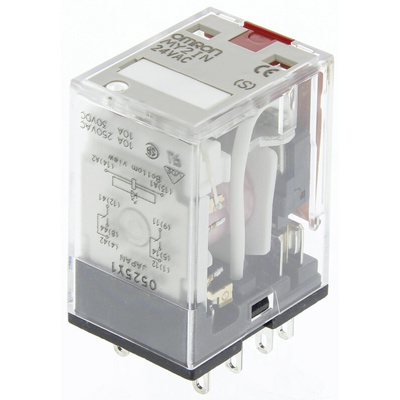

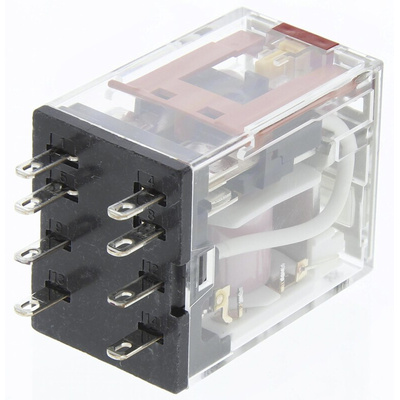

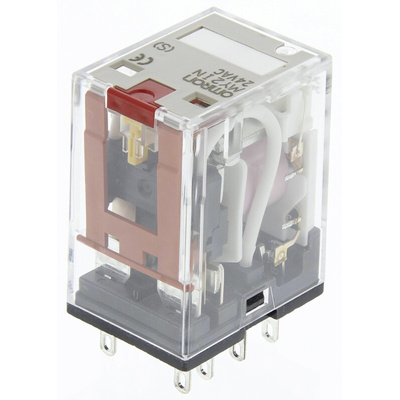

MY2IN AC24(S), Omron Plug In Power Relay, 24V ac Coil, 10A Switching Current, DPDT, Реле

5484251
Номер производителя: MY2IN AC24(S)Производитель: Omron
Цена за шт.
2555.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

MY Series

Switch power: 10A version: 1100W, 5A version 660W
Contact resistance: 100mΩ
Isolation coil to contact: 2000Vac
Operating temperature range: -55 to +70°C
Maximum switching voltage: 250Vac; 125Vdc
Contact material: AgNi
Dimensions: H42.4mm x W21.5mm x D28mm

Approvals

VDE, UL, CSA

Omron MY Series Power Relay, 24VAC Coil Voltage, 2 Poles - MY2IN AC24(S)

This power relay from Omron offers exceptional performance in power applications. With a DPDT configuration and a coil voltage of 24VAC, this relay ensures efficient power switching in various electrical setups. The 180 Ohm coil resistance and 2kV isolation coil to contact feature make it a reliable choice for demanding tasks.

Features & Benefits

• DPDT configuration for versatile switching capabilities
• 24VAC coil voltage ensures compatibility with common power systems
• 180 Ohm coil resistance for optimal performance
• 2kV isolation coil to contacts for enhanced safety
• Plug in design for easy installation and maintenance
• 10A switching current for handling high power loads
• 2.5kVA switching power for robust operation

Applications

• Ideal for power distribution systems
• Suitable for industrial automation applications
• Used in HVAC control systems
• Perfect for lighting control applications
• Effective for motor control in machinery

Can it handle high power loads efficiently?

Yes, the 10A switching current ensures reliable performance in demanding applications.

Will it provide safe operation in electrical setups?

Yes, with a 2kV isolation coil to contact, safety is prioritised.

Is it suitable for industrial automation applications?

Yes, the DPDT configuration makes it versatile for various automation tasks.

Approvals

VDE; UL; CSA

Техническая спецификация
pdfMY(S) Datasheet
