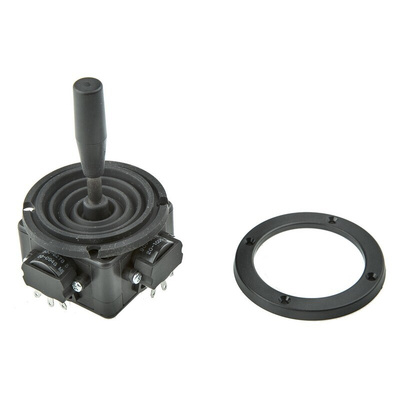

CH Products Joystick
The CH Products 2 way potentiometer joystick has an operating life of 5000000. It is a low profile potentiometric controller providing precision multi-axes finger-positioning control. This self-centering potentiometer joystick is ideal for applications where high accuracy and low operating force is a priority, such as in electric wheelchair, CCTV and robotics applications.
Features and Benefits
Potentiometers resistance of 5kohm ±20%
Potentiometers power is 0.5W
Potentiometers linearity is ±5%
Dual and three-axis self-cantering joystick with two-piece panel sealing kit
3rd axis control achieved using rotational displacement of the handle
SPST switch option on the three-axis model
Stainless steel ball pivot system and high-grade plastic bearing surfaces for long life and accurate return to centre repeatability
Panel thickness is 1.3mm to 4.75mm
Operating temperature ranges between -25℃ and 85℃
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
DrawingsM Series Miniature resistive joysticks Data SheetDatasheet| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
