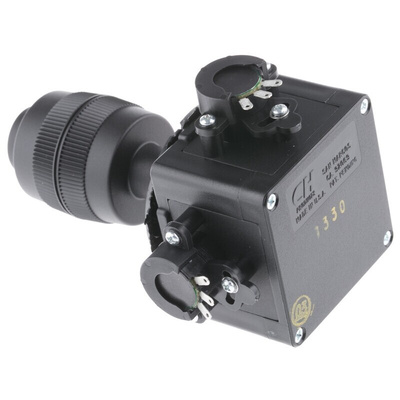

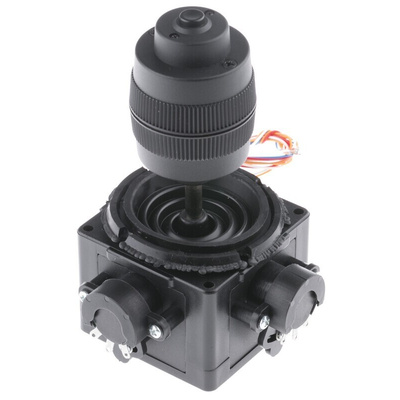

S40L091P-50, CH Products, 3 Way Potentiometer Joystick Passive, Джойстик-переключатель

Sealed Potentiometer Joysticks

Brought to you by CH Products, the M Series of potentiometer joysticks are compact and low profile. With dual and three axis joysticks available, these self-centering potentiometer joysticks are ideal for applications where high accuracy and low operating force is a priority, such as in electric wheelchair, CCTV and robotics applications.

Features and Benefits:

• Dual and three axis self centering joystick with two piece panel sealing kit
• 3rd axis control achieved using rotational displacement of the handle
• SPST switch option on the three axis model
• Stainless steel ball pivot system and high grade plastic bearing surfaces for long life and accurate return to centre repeatability
• Potentiometers Resistance of 5kΩ ±20%
• Potentiometers Power of 0.5W
• Potentiometers Linearity of ±5%
• Panel Thickness of 1.3 to 4.75mm
