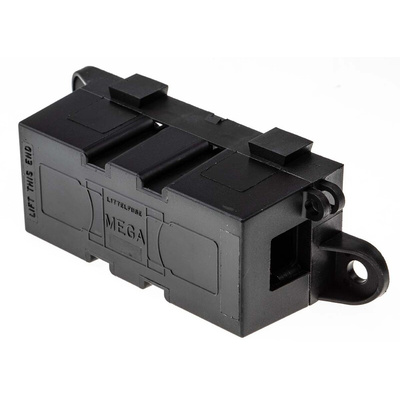

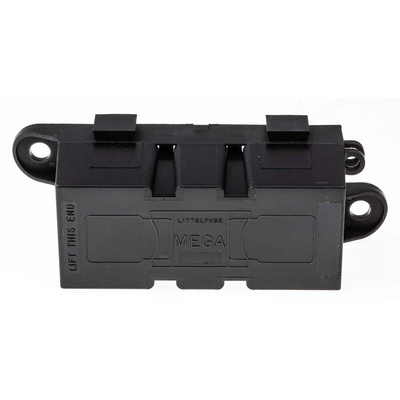

02980900TXN, Littelfuse 500A Inline Fuse Holder for BF2 Automotive Fuse, 32V ac/dc, Держатель предохранителя

Littelfuse BF2 Series Fuse Holders

From Littelfuse, the 298 series fuse holders designed for housing BF2 MEGA automotive blade fuses. The enclosed holders are robust and reliable, and their two-part construction is simple to install. Chassis mount fuse holders enable easy access for the inspection or replacement of damaged or blown fuses.

The MEGA fuse holders are ideal for heavy-duty applications up to 500 amps. They are mainly used for battery alternator connections and various other heavy-gauge cable applications that require ultra-high current protection.

Manufactured from high-quality materials, the 298 series fuse holders have interconnecting pins on the sides of the block. This handy feature allows the fuse holders to be used in multiple block configurations. A snap-fit cover is also included and provides extra protection from the ingress of dust and debris.

Features and Benefits

• Robust and reliable
• Constructed from High-quality black thermoplastic
• Single fuse holders or interlocking for multiple blocks
• Suitable for MEGA blade fuses from 40 Amps to 500 Amps
• 32 Volts DC max
• 14 AWG cable
• Bolt down terminals
• Includes M8 hex nuts and locking washer fixings
• Includes protective cap

Applications

MEGA Fuses and their holders are used to protect the circuits cabling from the excessive current that could lead to damage or electrical fire. MEGA bolt-down fuse holders are used in a wide range of heavy duty industrial applications. Some of the most common are

• Battery alternators
• Auto electric switchgear
• Marine watercraft
• Industrial equipment
• Automotive Switches

FAQ

Q - How are the Inline fuse holders fixed to the chassis or panel?
A - The Littelfuse automotive fuse holders have two fixing lugs at each end of the base with 3.2 mm holes. They can be secured to the panel or chassis with the supplied M8 fixings.
Q - What type of fuses are typically used with the MEGA fuse holder?
A - For suitable fuses see our BF2 series of blade fuses. Typically, 431-6810 and range

02980900TXN Datasheet

MEGA fuse holders Littelfuse Drawing
