3410.0021.01, SchurterSMD Non Resettable Fuse 200mA, 125V ac/dc, Предохранитель

SMD Fuse

Suitable for all SMD soldering processes
Ceramic body, tin-lead coated nickel caps

Approvals

UL, Recognised, CSA Certified (up to 3A)

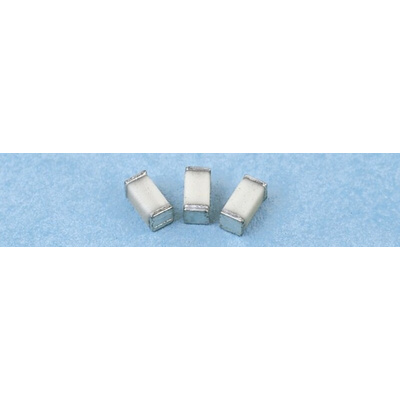

Schurter Surface Mount Ceramic Fuse

The Schurter MGA surface mount quick acting fuse has a ceramic housing and tin-lead coated nickel terminal. This surface mount fuse offers considerable space saving features for low voltage applications. The FF type is ideal for protection of high value silicon IC's. It has impermeable to potting compound, which is used to achieve hermetic seal for intrinsically safe applications. It has an electrical rating of 125VDC/125VAC and 200mA.

Features and Benefits

• Service temperature ranges between -55°C and 150°C
• Hermetically sealed and robust construction
• Suitable for all SMD soldering processes
• Breaking capacity is 50A
• Thin-film technology used

Applications

• Alarm system
• Military
• Audio/visual equipment
• Power supplies
• Medical equipment
• Industrial electronics

Certifications

• CSA C22.2 certified
• UL 248-14 approved

Surface Mount Technology

Surface mount fuses offer considerable space (and time) saving features for low voltage applications. The FF types are ideal for protection of high value silicon IC's e.g. alarm systems, audio/visual equipment, computer boards, portable telephones, power supplies, medical apparatus etc.

Datasheet
