RS PRO Straight Through Hole Pin Header, 32 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

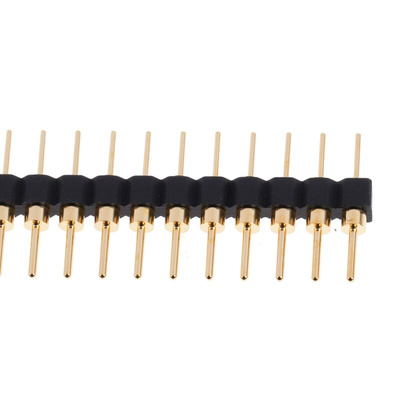

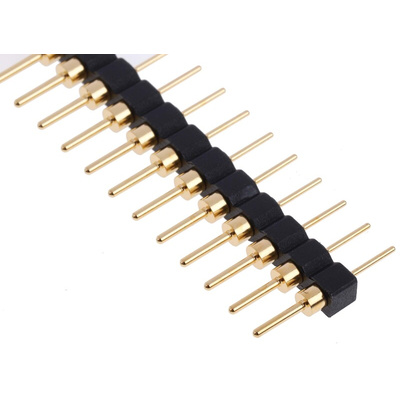

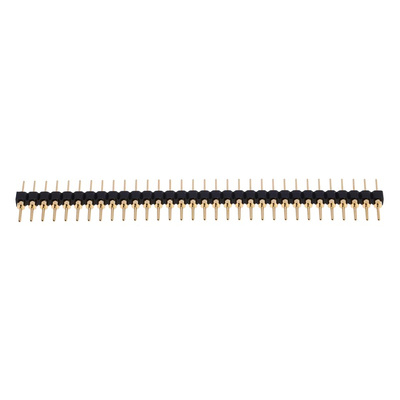

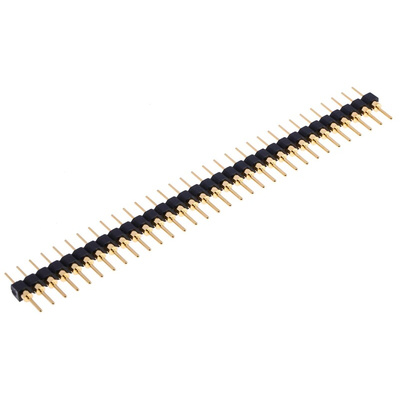

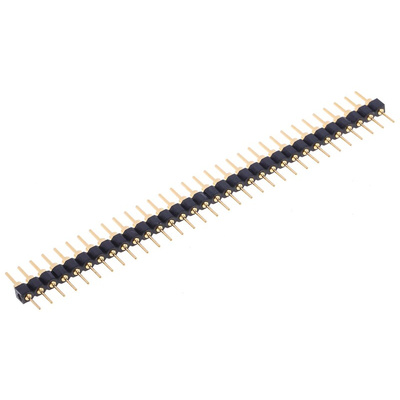

RS PRO, 32 Way, 1 Row, Straight Pin Header

Need a test point or board-to-board connector in your electronics project? Try this straight pin header from RS PRO. It's frequently used as a bridge between isolated or blocked circuits and for carrying current between printed circuit boards (PCBs).
The pin header has a voltage rating of 750 V AC/DC, so it's safe to use on a wide range of electrical equipment. It's a through-hole mounting type, so it's quick and easy to install, and once fitted it provides a secure connection. Pin headers like these are often used by electronics engineers to repair and customise electronics equipment. This product meets Restriction of Hazardous Substances (RoHS) standards, which means it contains only minimal amounts of any harmful materials.

Features and Benefits

• Straight body orientation
• Wire to board connector system
• Gold contact plating
• Current rating of 1 A
• Through-hole mounting type
• 32 contacts
• One row
• Pitch of 2.54 mm
• Unshrouded
• Solder termination method
• Voltage rating of 750 V AC/DC
• Plastic insulation material
