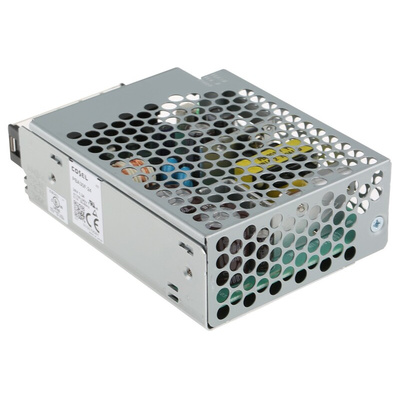

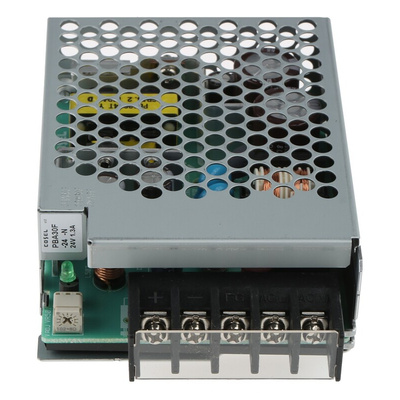

PBA30F-24-N, Cosel, 31W Embedded Switch Mode Power Supply SMPS, 24V dc, Enclosed, Источник питания

Cosel Embedded Switch Mode Power Supply

The Cosel PBA series 31W single output AC to DC embedded switch-mode power supply has an output current of 1.3A at 24VDC. This device is 35% to 65% smaller in volume than the conventional products of the same type. It has a universal input supply voltage rating ranging from 85VAC to 264VAC/ 110VDC to 370VDC
Note:
All models include a ventilated cover
Carry out the necessary testing on the end equipment with the power supply installed as per required EMC/EMI regulations

Features and Benefits

Lightweight and incredibly compact
Overcurrent and overvoltage protection
Harmonic attenuator
Convection cooled
Enclosed package type
Chassis mount

Applications

Automated machinery
Semiconductor equipment

Certifications

UL60950-1 (at only AC input)
C-UL (CSA60950-1)
EN60950-1
EN50178 complies with DEN-AN
Complies with FCC Part15 class B (conducted noise)
VCCI-B
CISPR22-B
EN55011-B
EN55022-B (additional EMI/EMC filter required to meet class B for PBA1500F models)
Harmonic attenuator complies with IEC61000-3-2 (PBA10F, 15F and 30F models - not built into active filter)

PBA10F-150F Series Datasheet

PBA Series Instruction Manual

PBA Series Optional Parts
