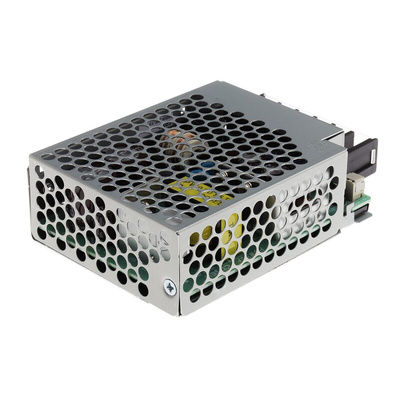

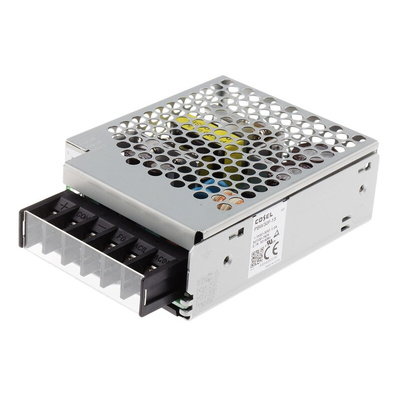

PBW30F-15-N, Cosel, 30W Embedded Switch Mode Power Supply SMPS, ±15V dc, Enclosed, Источник питания

6031139
Номер производителя: PBW30F-15-NПроизводитель: Cosel
Цена за шт.
24264.00 руб. (С НДС) *
Количество 5+ 10+ 25+ 50+
Цена 22809.00 руб. 21765.00 руб. 20988.00 руб. 20673.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Cosel Embedded Switch Mode Power Supply

The Cosel PBW series 30W dual output AC to DC embedded switch-mode power supply has an output current of 1A at 15VDC and 1.4A at -15VDC. It has a universal input supply voltage rating ranging from 85VAC to 264VAC/110VDC to 370VDC
Note:
Carry out the necessary testing on the end equipment with the power supply installed as per required EMC/EMI regulations.

Features and Benefits

Lightweight and incredibly compact
Harmonic attenuator built-in overcurrent protection
PFC function
Parallel operation and parallel redundancy
Convection cooled
Enclosed package type
Chassis mount

Certifications

UL60950-1 (at only AC input)
C-UL (CSA60950-1)
EN60950-1
EN50178 complies with DEN-AN
Complies with FCC Part15 class B (conducted noise)
VCCI-B
CISPR22-B
EN55011-B
EN55022-B (additional EMI/EMC filter required to meet class B for PBA1500F models)
Harmonic attenuator complies with IEC61000-3-2 (PBA10F, 15F and 30F models - not built into active filter)

Техническая спецификация
pdfpower supply
Вес:
270гр
Входное напряжение:
110 → 370 V dc, 85 → 264 V ac
Выходной ток:
1 A, 1.4 A
Глубина:
78мм
Длина:
119.5мм
Количество выходов:
2
Максимальная температура:
+71°C
Минимальная температура:
-10°C
Мощность номинальная:
30Вт
Напряжение выходное:
±15В пост. тока
Тип монтажа:
Монтаж на шасси
Тип упаковки:
Enclosed
Ширина:
34.5мм
Эффективность:
78 %, 79 %
