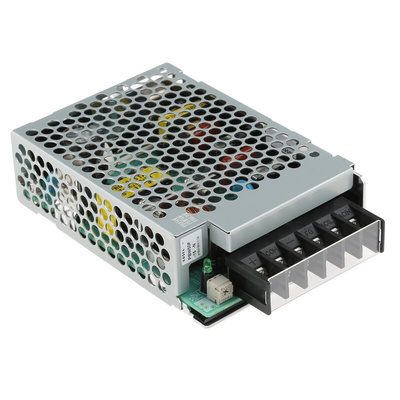

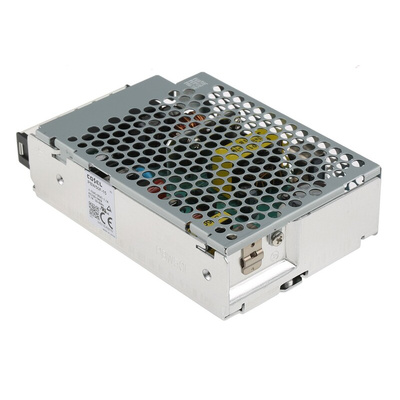

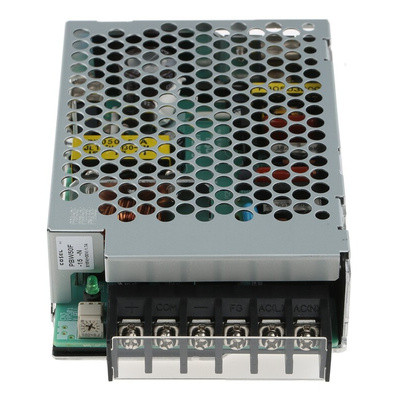

Cosel Switching Power Supply, PBW50F-15-N, ±15V dc, 1.7A, 51W, Dual Output, 120 → 370 V dc, 85 → 264 V ac, Источник питания

Cosel Embedded Switch Mode Power Supply

The Cosel PBW series 51W dual output AC to DC embedded switch-mode power supply has an output current of 1.7A at 15VDC and 2.4A at -15VDC. It has a universal input supply voltage rating ranging from 85VAC to 264VAC or 120VDC to 370VDC.
Note:
Carry out the necessary testing on the end equipment with the power supply installed as per required EMC/EMI regulations.

Features and Benefits

Lightweight and incredibly compact
Harmonic attenuator built-in overcurrent protection
PFC function
Parallel operation and parallel redundancy
Convection cooled
Enclosed package type
Chassis mount

Certifications

UL60950-1 (at only AC input)
C-UL (CSA60950-1)
EN60950-1
EN50178 complies with DEN-AN
Complies with FCC Part15 class B (conducted noise)
VCCI-B
CISPR22-B
EN55011-B
EN55022-B (additional EMI/EMC filter required to meet class B for PBA1500F models)
Harmonic attenuator complies with IEC61000-3-2 (PBA10F, 15F and 30F models - not built into active filter)
