2866404, Phoenix Contact TRIO-PS/3AC/24DC/40 Switch Mode DIN Rail Power Supply, 400V ac ac Input, 24V dc dc Output, 40A Output,, Блок питания

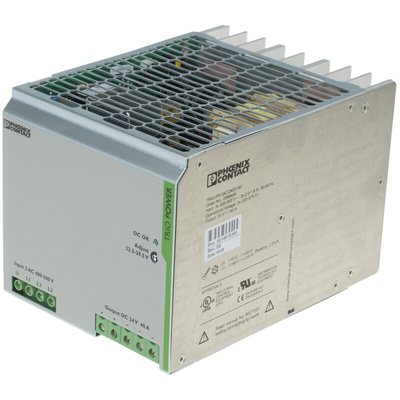

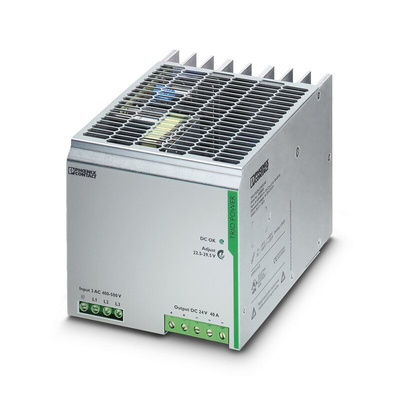

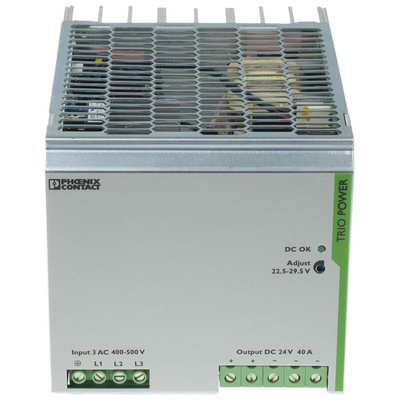

Phoenix Contact DIN Rail Power Supply, Three Phase, IEC Class I Protection - TRIO-PS/3AC/24DC/40 - 2866404

This DIN rail power supply from Phoenix Contact is a reliable switch-mode power solution for high-load applications in demanding industrial settings. It takes input voltages between 320 and 575V AC and converts them to a steady output supply of 24V DC that you can use to safely power your compatible equipment.
This unit has a wide operating temperature range of -25°C to +70°C, so it's suitable for use in harsh environments. The low ripple and noise rating of 20mV means you get stable output voltages with minimal risk of damage caused by voltage spikes. An LED provides a clear status indication of the supplied output voltage. Thanks to a mean time between failures of more than 500,000 hours, you can be assured of long-lasting performance.

Features & Benefits

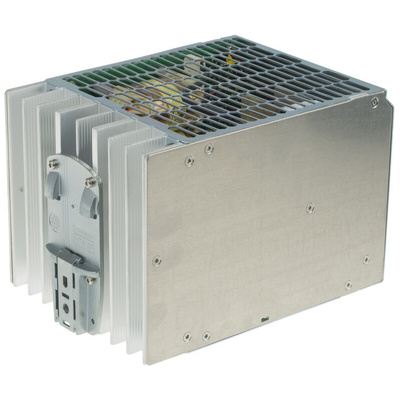

• Practical DIN rail mounting makes it a space-saving option in crowded setups
• Push-in cable connections save you time by eliminating the need for tools
• IEC Class I protection means it's safely earthed to minimise the risk of shock
• IP20-rating certifies it's safe to touch with your fingers and objects larger than 12mm
• UL, cULus and EAC approvals mean this product meets safety standards worldwide

Datasheet 2866404

Instruction Sheet - 2866404

Line Drawing - 2866404
