6019390022 SHS3-U15Z-KA 5 R, Bernstein AG SHS Safety Hinge Switch, NO/2NC, Переключатель

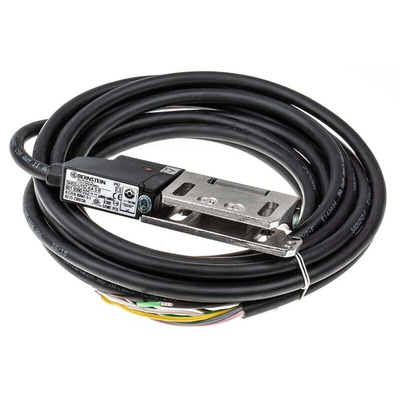

Bernstein AG Safety Hinge Switch

The Bernstein AG SHS series safety hinge switch has 2NC/1NO state configuration. This load-bearing hinge is made from stainless steel or die-cast zinc while the switching system is housed in a high-quality plastic enclosure. It has a contact current rating of a 3A at voltage rating of 230VAC and 24VDC.

Accessories
Empty hinge
Change kit comprising:
- 2 spare stoppers
- 1 special bit
- 1 plastic disc
- 1 operating and installation instruction
Cable coupler
- Shake-proof M12 x 1 plug
- Injection-moulded cable

Features and Benefits

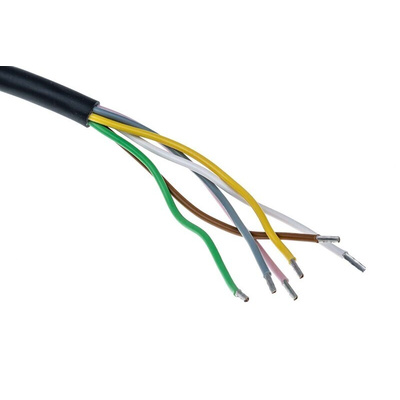

Type of connection and direction is axial cable

Flexibility and safety for hinged protective equipment
Freely and repeatedly adjustable switching point
Switching point freely adjustable by user over a range of 270°
Uncomplicated re-adjustment even of set switching point by ±1.5° because of an integrated fine adjustment system
Slots for mounting on sections and welded structures
Right and left hinged systems possible for optimum cable routing
Mounting between sections while maintaining the required finger guard gap

Applications

Packing machines
Printing and paper machines
Tool machines
Metal industry
Electrical industry
Special machine construction
Measurement technology, process engineering, testing and laboratory equipment
Plastics processing machinery
Enclosures/profile systems
Food processing machinery

Certifications

CSA certified
IP67 rated
IP 69K rated
