ECO24-141-1300-000, P.M.A ECO 24 PID Temperature Controller, 48 x 48mm, 3 Output, 100 264 V ac Supply Voltage, Регулятор температуры

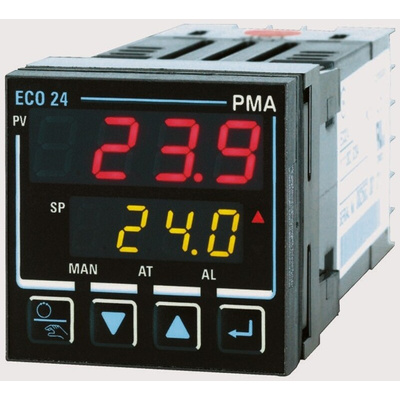

PMA ECO 24 Temperature Controller

Due to its extremely compact dimensions, the PMA ECO 24 can be installed even in the smallest machines. Its universal input and the flexible modular concept for a wide range of output types enable the controller to be adapted perfectly to the most varied automation tasks.

Similarly, the unit is configurable as signaller, continuous, 2-point or 3-point PMA controller for heating or cooling, as well as heating/cooling tasks, i.e. for universal applications. Moreover, ’split-range’ operation is possible in all combinations (e.g. continuous/switching), and various alarm functions put a finishing touch to the comprehensive package.

• High-precision universal input
• Accurate control behaviour with 250 ms scanning cycle
• Up to three plug-in output modules
• formA, V, relay, SSR driver or Triac
• Output function selectable as control
• Alarm, or measurement signal
• Comprehensive galvanic isolation
• External contact for 2nd setpoint
• Auto/Manual switchover
• Selectable setpoint ramp
• RS 485 with Modbus RTU protocol
• Front panel protection mode IP66
• cULus recognised
