0035807, Lapp Twisted Pair Data Cable, 16 Pairs, 0.25 mm², 32 Cores, 24 AWG, Screened, 50m, Grey Sheath, Кабель

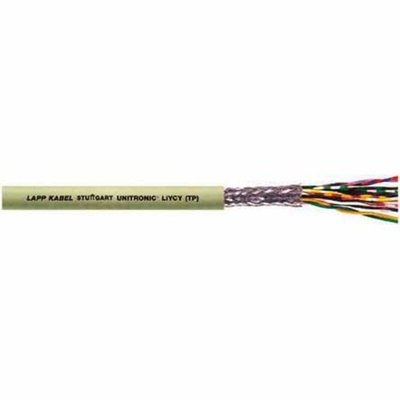

LAPP Screened Data Cable, 16 Twisted Pairs, 50m Length - UNITRONIC Series - 0035807

For reliable data transmission, turn to this data cable from LAPP. It comes with tinned copper braiding to eliminate interference from EMI, making it ideal for applications in busy environments. Inside, there are 16 twisted pairs of conductors, which support multiple connections and ensure the cable is flexible. A protective PVC jacket is on hand to protect against the heat, oil and chemical contamination you'd find in a heavy-duty environment.

Features & Benefits

• Reinforced 1.8mm outer sheath withstands outdoor use and harsh indoor conditions
• Slim 12.5mm cable diameter is ideal for compact setups
• Conductor cross-sectional area of 0.25mm² provides high compatibility with industrial equipment
• Supplied on a 50m reel to let you cut the lengths you need

Applications

• Computer networking systems
• Public sector buildings
• Logistics industry

Can I use this data cable with serial interfaces?

Yes, this cable is suitable for RS422 and RS485 networks with data transfer rates up to 10Mbps.
