0035816, Lapp Twisted Pair Data Cable, 12 Pairs, 0.5 mm², 24 Cores, 20 AWG, Screened, 50m, Grey Sheath, Кабель

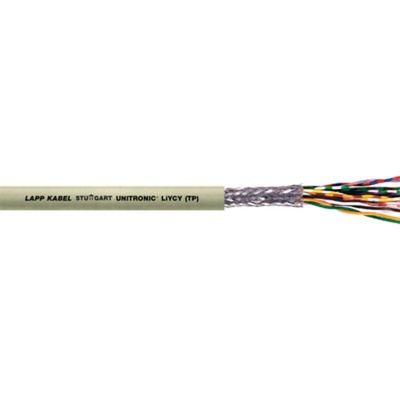

Unitronic® LiYCY (TP) Data Cable

From Lapp, the Unitronic LiYCY (TP) data cable has been developed from tried and tested VDE 0812 cables. They are also used as electronic control and signal lines for computers and electronic control devices.

This low-frequency data transmission cable has a shield braid that minimizes electrical interference, making it ideal for use in applications where inference signals may be a concern.

The Unitronic cable is comprised of fine-wire copper strands with a PVC core insulation. It is flame retardant, and is suitable for a variety of applications in dry or damp interiors.

Features and Benefits

• Cores stranded in pairs (TP)
• Film covering
• Shield braid made from tinned wires
• PVC outer sheath
• Flame Resistant
• Operating temperature in fixed installations -40°C to +80°C
• Operating temperature in occasional flexing -5°C to +70°C

Applications

This screened, low frequency PVC data cable is ideal for multifunctional use in electronic equipment such as;

• Computer Systems
• Electronic Control Equipment
• Office Machines

Accessories

Lapp Unitronic cables should be used alongside accessories that match their capabilities. As such a range of easy-to-install cable glands are provided.

• 136-8515 is an M12 Halogen Free Skintop EMC Cable Gland
• 136-8516 is an M16 Halogen Free Skintop EMC Cable Gland
• 136-8517 is an M20 Halogen Free Skintop EMC Cable Gland
• 136-8518 is an M25 Halogen Free Skintop EMC Cable Gland
• 136-8519 is an M32 Halogen Free Skintop EMC Cable Gland

LAPP UNITRONIC Series Data Cable, PVC, S/UTP Shield - 0035816

The LAPP data cable is a high-quality twisted pair cable with a 20 AWG American Wire Gauge. With a LiYCY designation, this UNITRONIC cable boasts a flame-retardant feature and is screened for optimal performance. The cable has a cross-sectional area of 0.5mm², making it suitable for a variety of applications. The grey PVC sheath provides durability and protection, while the 500V voltage rating ensures reliable operation.

Features & Benefits

• Twisted pair design minimises crosstalk effects
• Screened cable for enhanced performance
• Flame-retardant properties for safety
• Grey PVC sheath for durability and protection

Applications

• Ideal for use in electronics of computer systems
• Perfect for electronic control equipment
• Suitable for office machines
• Can be used in balances and more

Can it be used in damp rooms?

Yes, the Lapp data cable can be used in both dry and damp rooms for versatile applications.

Will it provide good protection against interference from electric fields?

Yes, the cable offers good protection against capacitive interference from electric fields due to its design.

Is it suitable for use in applications that require a flame-retardant cable?

Yes, the Lapp data cable is flame retardant, making it ideal for applications where safety is a concern.

Can it be used for multiple functions in electronic control equipment?

Yes, the cable can be used multifunctionally in electronics of computer systems, office machines, balances, and more.
