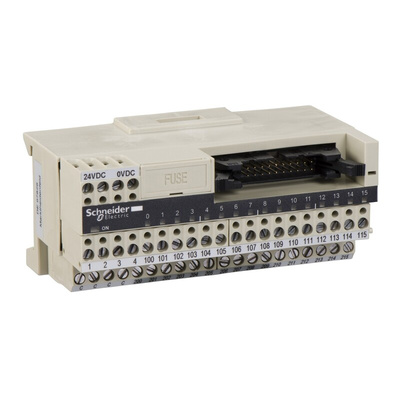

ABE7H16C21, Schneider Electric Base for Use with Advantys ABE7 Telefast Pre-Wired System, 19 → 30 V

Schneider Electric Passive Discrete Sub-Base For Use With Advantys ABE7 Telefast Pre-Wired System, 16 Channels - ABE7H16C21

This Schneider Electric passive discrete sub-base helps you establish rapid connections to other I/O modules. It's a 16-channel interface specifically designed for use with the Advantys ABE7 Telefast Pre-Wired System. The unit acts as a substitute for screw-terminal blocks and remotely locates and partly eliminates single-wire connections. You can considerably reduce wiring times and the risk of errors thanks to the relay and connection functions. Robust plastic housing is on hand to protect the internal components from contaminants found in industrial environments, making the base long-lasting.

Features & Benefits

• Easy-to-read LED status indicators let you easily see if a channel is on or off
• Overload protection interrupts power supplies when faults are detected, protecting equipment and users
• Accommodates wire sizes from 28 to 12AWG for use with different PLC components

Applications

• Security control systems
• Automated guided vehicles
• Smart factory applications
• Smart lift control operations

Can I mount this base unit on a DIN rail?

Yes, this base can be mounted on a DIN rail to save space. A DIN rail helps you order your components and mount different devices separately in enclosures where space is limited.

Note

Max. current stated is per channel

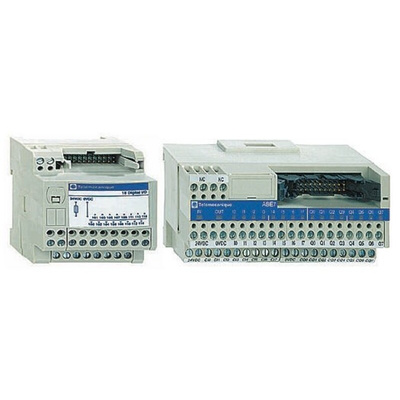

Schneider Electric Telefast 2 Pre-Wired System

The Telefast 2 system of pre-cabling is composed of modules connected to the PLC by means of a multicore cable equipped with HE 10 connectors . The Telefast 2 interfaces make it possible to simplify the operation of wiring and thus limiting errors.
