CA3KN31BD3, Schneider Electric CA3KN Series Contactor, 10 A, 3 W, 3NO + 1NC, 690 V dc, Контактор

Schneider Electric | TeSys K Series | Control Relays

Creating seamless integration in all automation applications, compactness ratio and high performance, the TeSys K series is a range of reversing or non-reversing contactors. All 4 pole relays have 10A thermally rated contacts which are suitable for AC or DC control voltages. In addition the series also features low consumption coil versions with built in suppression which are suitable to be used with programmable controllers.

Features and Benefits:

• Common options available for all 6, 9, 12 A ratings
• AC and DC Control circuits available
• Low-consumption DC and silent
• Variety of auxiliary contacts, and timer modules
• Clamp terminals as standard with spring terminal, printed circuit board connection and fast-on connector types available
• Consistent connection tightness
• Power consumption for Vac types 4.5 VA
• Power consumption for Vdc types 2.4 W
• Resistance to vibration & temperature cycling
• Din or screw fixing

Protection ratings & Safety features:

• BS 5424, IEC 60947, NF C 63-140 and VDE 0660 standards
• CSA and UL certification
• IP2x protection
• TC conforming to IEC 60068

Applications - Ideal for Zones sensitive to noise, disturbed mains supplies, industry, building and infrastructure. Other applications include:
• Switching contactor or relay coils
• Powering control and signalling equipment
• Simple control systems

Note

Relays are positively guided.

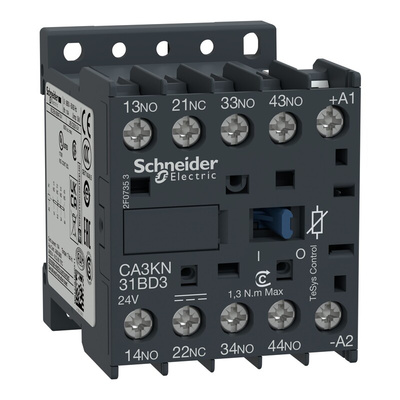

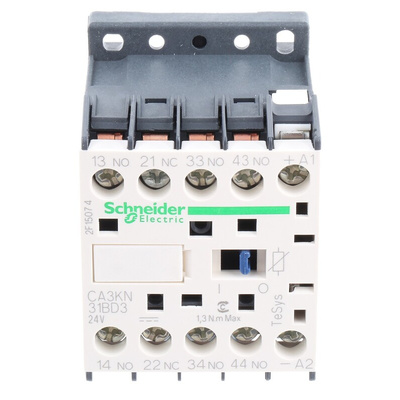

Schneider Electric Control Relay, 24V DC Control Circuit Voltage, Screw Terminals - TeSys K Series - CA3KN31BD3

Choose this control relay from Schneider Electric to enjoy reliable motor performance. Thanks to peak limiting coil technology, you can count on it to reduce the chance of voltage surges during motor startups, which minimises the risk of overload and damage to equipment. Screw terminals make the unit a cinch to wire using only a screwdriver. As the robust connections resist shock and vibration, you can depend on the device's durability in harsh industrial settings. Thanks to its insulation, you're protected against electric shocks. An operating rate of 10,000 cycles per hour indicates this control relay can match the pace of demanding circuits without breaking a sweat.

Features & Benefits

• High recyclability potential to reduce the amount of waste sent to landfills
• Flame-retardant for safety, so it burns for a maximum of 30 seconds if it catches fire
• Light weight of 225g puts minimal strain on your control panel

Applications

• Industrial automation
• Chemicals processing
• Public infrastructure
• Textile industry

How do I mount this control relay?

This component is designed for easy DIN rail mounting on a standard 35mm rail, with or without a mounting plate.
