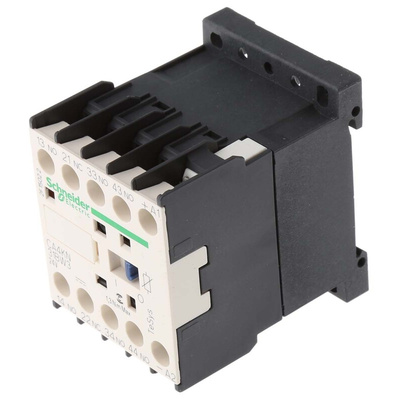

CA4KN31BW3, Schneider Electric CA4KN Series Contactor, 10 A, 1.8 W, 3NO + 1NC, 690 V ac, Контактор

6087227
Номер производителя: CA4KN31BW3Производитель: Schneider Electric
Цена за шт.
19453.20 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Schneider Electric TeSys K Series Low Consumption Control Relays.

From Schneider Electric this is the Tesys K series of low consumption Control Relays a range of reversing and non-reversing contactors up to 5.5 kW 400/415 V. Providing excellent performance and compactness ratio with seamless integration of all applications. The control relays are available as 4 pole relays with 10 A thermally rated contacts suitable for AC or DC voltages. The Control relays available as low consumption models with built-in suppression suitable for programmable controllers.

Features.

  • Common options available for all ratings, 6 A, 9 A, 12 A.

  • Control circuits available, AC, DC, low consumption DC, silent.

  • Applications – 2.2 kW, 4.35 kW, in AC3 and AC4.

  • Connectors – Screw clamp, Faston, Spring terminals, Pins for PCB (printed circuit boards).

  • Contacts with 10 A Thermal rating (suitable for use down to 17 V 5mA).

  • 4-Pole operation with AC or DC control circuits.

  • Auxiliary contacts and timer modules.

  • Industry, infrastructure, building.

  • Simple control systems.

  • Noise sensitive areas, disturbed mains supply, silent contactor.

Schneider Electric Control Relay, Low-Consumption Coil, Screw Terminals - TeSys K Series - CA4KN31BW3

This control relay from Schneider Electric puts energy-efficient motor control at your fingertips. Its low-consumption coil features a built-in bidirectional peak-limiting diode suppressor that minimises power spikes when a motor starts. This helps to protect your equipment against electrical surges and also reduces the unit's power consumption. For snappy mounting, clip it directly onto a DIN rail or mount it on a plate. As 60% of this relay is recyclable, you can rest assured it's end-of-life optimised to reduce the amount of waste sent to landfills.

Features & Benefits

• Easy to integrate into a busy control panel, thanks to its compact dimensions of 58 (L) x 45 (W) x 57mm (D)
• Maximum operating rate of 6,000 cycles per hour to meet the needs of demanding circuits
• Insulated for protection against electric shocks

Applications

• Automotive manufacturing
• Oil and gas industries
• Lifting and hoisting equipment
• Shipyards

Can I use this control relay in vibration conditions?

Yes, as the unit's durable screw terminals maintain firm contact with its conductors, it's a practical choice for settings where vibration and shock are expected.

Standards

BS 5424, IEC 60947, NF C 63-140, VDE 0660, UL, CSA, IP2x.

Техническая спецификация
pdfCA4KN31BW3 Datasheet
pdfGreen Premium Ecolabel
pdfProduct Environmental Profile
Верификация Better World:
Green Premium
Вид монтажа:
Rail
Глубина:
57мм
Диапазон:
TeSys K
Длина:
58мм
Мощность номинальная:
1.8 Вт
Напряжение управления:
24 В пост. тока
Номинальное напряжение контакта:
690 В перем. тока
Номинальный ток контакта:
10 A
Нормальное состояние конфигурации:
3NO + 1NC
Рабочая температура - максимальная:
+50°C
Рабочая температура - минимальная:
-25°C
Серия:
CA4KN
Тип клеммы:
Винт
Товар Better World:
Да
Ширина:
45мм
