CAD50E7, Schneider Electric CAD5 Series Contactor, 48 V ac Coil, 3-Pole, 10 A, 5NO, 690 V ac, Контактор

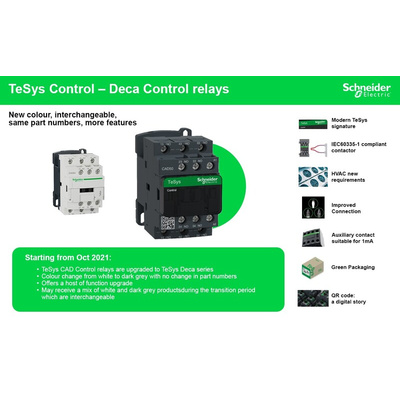

Schneider Electric TeSys D Series Control Relay Contactors CAD Series.

Featuring a new design, the TeSys D series of contactors are simple and fast to set up in all automation applications. Compliant with international standards these relays maintain a compact size of 45 to 55mm (40 to 65A). Assuring a permanent tightening quality even in the event of conductor creep, all versions are equipped with EverLink which is a new patented technology. Each relay is also as standard 10A with 5 poles, suitable for AC or DC control. A version is also available with low consumption and built in suppression.

What is EverLink technology?

A removable terminal block, contactors and circuit-breakers can be linked without and accessory, vertically. On the same rail wiring can be connected in less than a minute. Reducing heat loss at connection points and without creep this technology provides quality wiring, continuity of service, fast assembly and reduced dimensions.

Features and Benefits.

• Thermal contacts 10A with operation down to 17V 5mA


• AC and DC Control circuits available


• Low-consumption DC and silent


• Variety of auxiliary contacts, and timer modules


• 5 pole


• Resistance to vibration & temperature cycling


• Rated impulse withstands voltage 6 kV conforming to IEC 60947

Protection ratings & Safety features.

• BS 4794, EN 60947-5, IEC 60947-5-1, NF C 63-140 and VDE 0660 standards


• CSA and UL certification


• IP2x protection front face conforming to VDE 0106


• TH conforming to IEC 60068

Applications.

• Used to create motor starters for any type of application and integration in control systems. Other applications include:


• Switching contactor or relay coils


• Powering control and signalling equipment


• Simple control systems


• Industry, infrastructure, and building

CAD50E7 TeSys CAD D Control Relay AC Standard Coil.

• TeSys CAD Control relay.


• Control circuit applications.


• DC-13, AC-14, AC-15 Category.


• Ue] rated operational voltage <= 690 V AC 25...400 Hz.


• Control circuit type AC at 50/60 Hz.


• [Uc] control circuit voltage 48 V AC 50/60 Hz.


• Irms rated making capacity 140 A AC conforming to IEC 60947-5-1, 250 A DC conforming to IEC 60947-5-1.


• Rail and Plate mounting.


• Screw clamp terminals.


• Minimum switching voltage 17 V.


• Minimum switching current 5 MA.


• Shock resistant to IEC 60068-2-27.


• Vibration resistant to IEC 60068-2-6.


• Protection to IP2x front face to VDE 0106.

Approvals

UL, CSA.

Standards

BS 4794, EN 60947-5, IEC 60947-5-1, NF C 63-140, VDE 0660.
