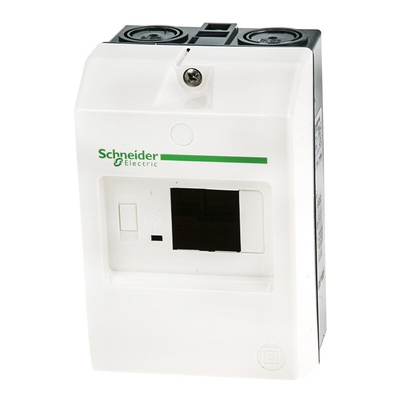

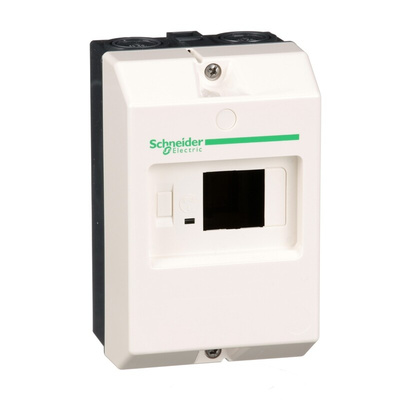

GV2MC01, Schneider Electric Enclosure for Use with GV2ME Series, 147mm Length

Schneider Electric Enclosure For Use With GV2ME Series MCBs, Surface Mounting Enclosure Type, 263g Weight - GV2MC01

Use this robust enclosure from Schneider Electric to safeguard your equipment. It pairs with MCBs in the TeSys GV2ME series (such as 608-8472) and protects devices with double-insulated casing. You can simply mount the unit on a flat surface and use its screw terminals to wire it up easily. There are two handy knock-outs located at the top and underside of the box to make room for cable glands.

Features & Benefits

• IP41 rating indicates protection from tools and small wires bigger than 1mm
• Polycarbonate enclosure provides durability and resistance to abrasion and mechanical stress for a longer service life
• Dimensions of 147 (H) x 93 (W) x 84mm (D) for compact setups
• Accommodates auxiliary contact blocks, push buttons and circuit breakers for versatility

Applications

• Automated processing
• manufacturing facilities
• Electrical services

Does this product contain any contaminants?

The unit is part of Schneider Electric's Green Premium range, meaning it's free from mercury and toxic heavy metals and contains no more than negligible amounts of any harmful materials.
