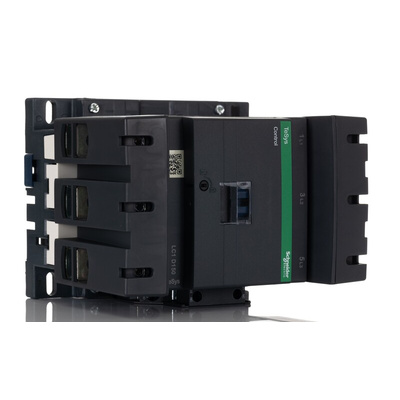

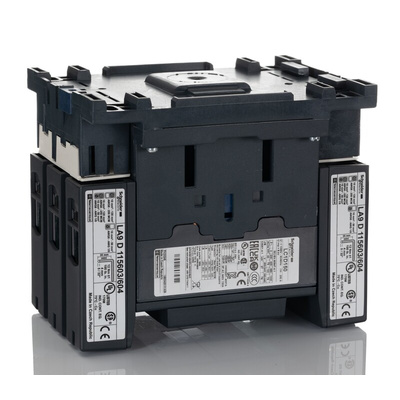

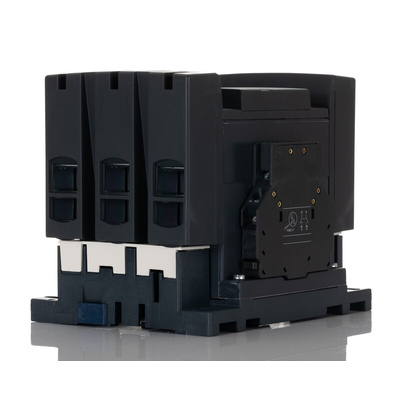

LC1D150FE7, Schneider Electric LC1D Series Contactor, 115 V ac Coil, 3-Pole, 150 A, 80 kW, 3NO, 1 kV ac, Контактор

Schneider Electric LC1D TeSys D Contactors.

TeSys D Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The range has been designed for integration in control systems and can be used to create motor starters for any type of application. The TeSys D contactors offer quick simple setup while maintaining compliance with international standards.

Features and Benefits.

• Built-in auxiliary contacts for added switching capability.


• Screw connections: IP20 finger-safe terminals with both North American and International terminal markings.


• Can be panel mounted with screws or DIN Rail mounted.


• Bidirectional peak limiting diode suppressor to protect the coil.


• Easily installed accessories.


• Flexible control circuit to suit a wide range of applications.

What does the utilisation category AC1 and AC3 mean for the TeSys contactors?

• Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.


• AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.


• AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.

What accessories are available?

• Auxiliary contact blocks with serrated wiping action.


• Front mount dust tight auxiliary contact blocks.


• Pneumatic time delay blocks.


• Transient voltage surge suppressors.


• Interface modules and electronic timers.


• Mechanical latching blocks.

Is the TeSys D range a double break pole type contactor?

• Yes, the Tesys D range uses linear translation movement that provides double breaking of the poles.

Schneider Electric Contactor, 8kV Impulse Withstand Voltage, IP20 Rating - LC1D Series - LC1D150FE7

When the job calls for a contactor with the strength to see off surges, choose this one from Schneider Electric. It meets utilisation categories up to AC-4, so you can depend on it to safely start and stop circuits in demanding industrial applications like motor control. This also makes it a practical pick for resistive loads and with load-drawing kit such as compressors and pumps. Thanks to an impressive impulse withstand rating of 8kV, you can rest assured it shields you and your equipment against damage caused by spikes in your electrical supply. As it's a three-pole model, you can use it to support up to three connected devices.

Features & Benefits

• IP20 rating indicates it poses so risk of electric shock when you touch it with your fingers
• A breeze to tighten by hand thanks to its low tightening torque of 1.2Nm
• Works across a broad operating temperature range of -40°C to +60°C, making it compatible with harsh environments

Applications

• Factory floors
• Furnace control
• Mechanical engineering

How quickly does this contactor respond?

Thanks to its speedy opening (40 to 75ms) and closing (20 to 35ms) times both under 1 second, you can trust you're getting lightning-fast switching performance from this contactor.

Approvals

CCC, BV, DNV, CSA, LROS (Lloyds register of shipping), GOST, RINA, GL, UL, UKCA.

Standards

CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508.
