LC1D18FE7, Schneider Electric LC1D Series Contactor, 115 V ac Coil, 3-Pole, 18 A, 7.5 kW, 3NO, 690 V ac, Контактор

Schneider Electric LC1D TeSys D Contactors.

TeSys D Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The range has been designed for integration in control systems and can be used to create motor starters for any type of application. The TeSys D contactors offer quick simple setup while maintaining compliance with international standards.

Features and Benefits.

• Built-in auxiliary contacts for added switching capability.


• Screw connections: IP20 finger-safe terminals with both North American and International terminal markings.


• Can be panel mounted with screws or DIN Rail mounted.


• Bidirectional peak limiting diode suppressor to protect the coil.


• Easily installed accessories.


• Flexible control circuit to suit a wide range of applications.

What does the utilisation category AC1 and AC3 mean for the TeSys contactors?

• Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.


• AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.


• AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.

What accessories are available?

• Auxiliary contact blocks with serrated wiping action.


• Front mount dust tight auxiliary contact blocks.


• Pneumatic time delay blocks.


• Transient voltage surge suppressors.


• Interface modules and electronic timers.


• Mechanical latching blocks.

Is the TeSys D range a double break pole type contactor?

• Yes, the Tesys D range uses linear translation movement that provides double breaking of the poles.

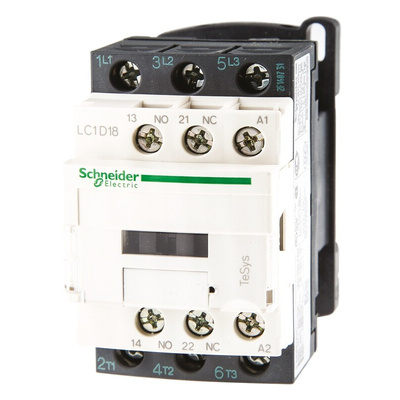

Schneider Electric Contactor, Screw Terminal Type, 2 Auxiliary Contacts - TeSys D Series - LC1D18FE7

When you need to take charge of motor control, pick up this contactor from Schneider Electric. It switches the electrical supply to circuits on and off while safeguarding equipment from power surges. Designed with two built-in auxiliary contact blocks, the contactor provides a handy source of backup support. As it has three poles, you can use it to monitor multiple circuits at once. A power rating of 7.5kW makes this an efficient choice for industrial power control applications.

Features & Benefits

• Screw clamp terminals for fast, fuss-free installation
• Front panel is touch-proof with an IP20-rated level of protection against objects larger than 12mm
• Performs for the long haul, thanks to a mechanical lifespan of 15 million switching cycles
• Wide operating temperature range between -40°C and +60°C makes it suitable to use in challenging settings
• 690V AC voltage rating and 18A current rating means it stands up to heavy-duty machinery

Applications

• Automotive manufacturing
• Food and beverage packaging
• Commercial lighting systems

What size is this contactor?

The unit's compact dimensions of 77 (H) x 45 (W) x 86mm (D) help it fit into limited workspaces.

Approvals

BV, CCC, CSA, DNV, GL, GOST, RINA, UL, LROS.

Standards

EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, CSA C22.2 No 14.
