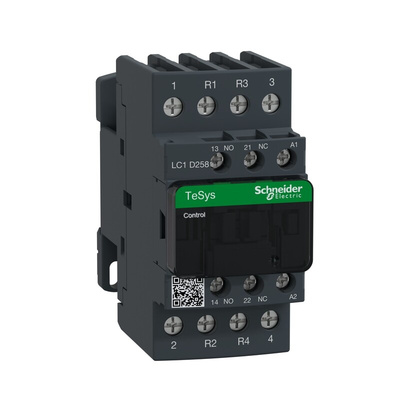

LC1D258E7, Schneider Electric LC1D Series Contactor, 48 V ac Coil, 4-Pole, 40 A, 2NO + 2NC, 690 V ac, Контактор

Schneider Electric Contactor, 4 Pole, 690V AC Contact Voltage Rating - TeSys Series - LC1D258E7

To reliably switch industrial circuits on and off, choose this contactor from Schneider Electric's TeSys range. The relay is specifically designed to handle control processes with higher current capacities, so it's a versatile option. Self-extinguishing housing means it won't spread fire, to promote workplace safety. A bidirectional peak limiting diode suppressor protects the coil to deliver a long service life. You can mount the contactor on a panel or rail to meet the needs of your system.

Features & Benefits

• DIN-rail mounting capability for organised and space-saving installations
• Integrated auxiliary contacts for improved switching performance
• Wide operating temperature range between -5°C and +60°C for use in demanding conditions
• Screws ensure a vibration-proof connection

Applications

• Capacitors
• Lighting equipment
• Electric motors
• Heating systems

Can I fit this contactor in small spaces?

Yes, this compact contactor has dimensions of 105 (L) x 45 (W) x 97mm (D), so won't take up much space on a crowded panel.

What are the closing and opening operating times of this contactor?

This contactor has reliably quick operating times. It closes at between 12 and 22ms and opens at between 4 and 19ms.

Approvals

LROS (Lloyds register of shipping), CSA, UL, GOST, DNV, CCC, GL, BV, RINA, UKCA.

Standards

CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1.
